Accuphase金嗓子 金嗓子Accuphase E211

上市参考售价:¥9,500

推出年代:1998.10

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
日本发烧名厂Accuphase旗下最平价的合并式放大器,也是该公司价格最便宜的一款产品。整体造型沿袭家族血统的香槟金色与功率表设计,虽然和自家顶级机种的典雅气质稍有差距,但是仍为标准Accuphase的正宗外观造型。

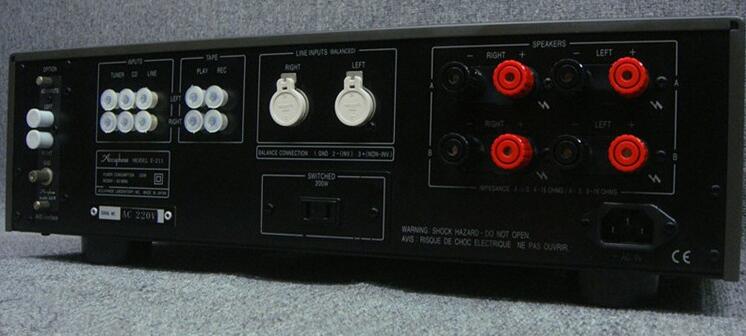

    E-211最特殊之处在于它配备了该公司近年来极力发展的AAB(Accuphase Analog Bus)模拟扩充接口,用家可以依照自己的实际使用需要,选购原厂推出的多种适配卡,而这也使得E-211成为本次集体试听器材中,扩充性最强的一款产品。背板上配置了一组高电平XLR输入,三组高电平RCA输入,一组录音回路,与二组喇叭输出端子,算是走实用性取向的设计。日本扩大机惯有的电源插座,E-211背板上也有一组(输出200瓦)。面板上共有讯源切换、音量控制、录音回路切换、高低音调控制与平衡控制等旋钮,电源开关、喇叭输出切换、单声道/立体声切换,音调控制Bypass等则为按键设计。耳机输出插孔与遥控器,也是日系扩大机的基本配备。

    E-211内部也是井然有序的排列,前置放大线路、控制线路、左声道功率级、右声道功率级与输出保护线路完全分开,原厂为了抑制不良振动还特别设计了双层底座,机箱的完成度相当可观。以一只EI型变压器和总容量44,000uF的特制滤波电容量,对于90瓦输出功率也算是相当丰沛。
                                                                                                                                                              ——音响论坛

器材规格

Form Integrated stereo amplifier
Rated continuation average output
(Both channel operation, 20Hz - 20kHz) 115 W/ch (4ohms)
105 W/ch (6ohms)
90 W/ch (8ohms)
THD (both channel operation) 0.04% (4ohms - 16-ohm load)
IM distortion 0.01%
Frequency response High Level input: 20Hz-20kHz+0 -0.2 dB (at the time of a rated continuation average output)
Dumping factor 110 (8-ohm load, 50Hz)
Input sensitivity/impedance
(An Output power / EIA1W output) High Level input: 213mV/22.5mV/20kohm
Balanced input: 213mV/22.5mV/40kohm
Gain High Level input -> output: 42dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of an Output power S/N Input conversion noise
High Level input: 110dB -129dBV 81dB
Balanced input: 92dB -111dBV 81dB
Tone control Low-pitched sound (300Hz): ±10dB (50Hz)
Loud sound (3kHz): ±10dB (20kHz)
Loudness Compensation + 6dB (200Hz, Volume-30dB)
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 4ohm-16ohm
Headphone jack Conformity impedance: 4ohms - 100ohms
Power source AC100V, 50Hz/60Hz
Power consumption 30W (at the time of no inputting)
220W (Electrical Appliance and Material Control Law)
336W (at the time of an 8-ohm load Output power)
The maximum Dimensions Width 475x height 150x depth of 422mm
Weight 18.5kg
Attachment: Remote commander RC-23
Remote control system Infrared pulse system
Power source DC 3V
Dry cell AA -- type and two pieces
The maximum Dimensions Width 45x height 136x depth of 18mm
Weight 85g (Battery included)
