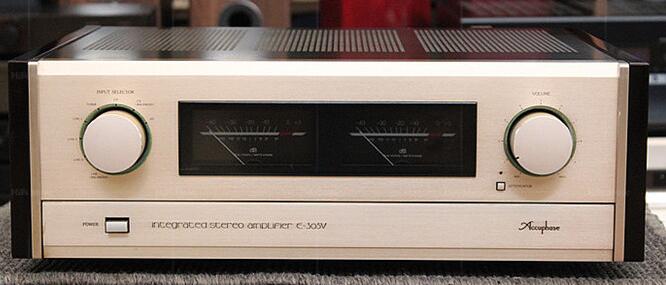

Accuphase金嗓子 金嗓子Accuphase E-305V

上市参考售价:¥14,000

推出年代:1991.11

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Integrated stereo Integrated Amplifier
Continuation average output (both channel operation)
20Hz - 20kHz, 0.02% of a distortion 4ohm load: 180 W/ch
8ohm load: 130 W/ch
THD (both channel operation)
0.25W - a continuation output, 20Hz - 20kHz 0.02% (4-16-ohm load)
IM distortion 0.01%
Frequency response
Main Amp Input: 20Hz-20000Hz+0 -0.2dB (at the time of an Output power)
0.5Hz-150000Hz+0 -3.0dB (at the time of 1W output)
High Level Input: 20Hz-20000Hz+0 -0.2dB (at the time of an Output power)
Low Level Input: 20Hz-20000Hz+0.2 -0.5dB (at the time of an Output power)
Dumping factor 100 (8-ohm load, 50Hz)
A rated input / input impedance
Input sensitivity Impedance
At the time of an Output power EIA (at the time of 1W output)
AD Input(MC): 0.123mV 0.01mV 100ohms
AD Input(MM): 4.3mV 0.34mV 47kohm
High Level Input: 125mV 10.9mV 20kohm
Balanced Input: 125mV 10.9mV 40kohm
Main Amp Input: 1.28V 111mV 20kohm
An Output power/Output load impedance Pre Output: 1.28V/200 ohm
Tape Rec Output: 125mV/200 ohms (AD)
Headphones: 0.4V, conformity impedance 4-100ohm
Gain Main Input -> Output: 28dB
High Level Input -> Pre Output: 20dB
AD Input (MM) -> Tape Rec Output: 30dB
AD Input (MC) -> Tape Rec Output: 60dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of a rated input S/N Input conversion noise
Main Amp Input: 124dB -121dBV 102dB
High Level Input: 110dB -128dBV 83dB
Balanced Input: 90dB -108dBV 82dB
AD Input(MM): 88dB -137dBV 80dB
AD Input(MC): 72dB -150dBV 80dB
Tone control Low-pitched sound: Turnover frequency 300Hz, ±10dB (50Hz)
Loud sound: Turnover frequency 3kHz, ±10dB (20kHz)
Subsonic Filter 17Hz, -12 dB/oct
Attenuator -20dB
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 4-16ohm
The semiconductor used Transistor: 59 pieces
FET: 22 pieces
IC: 24 pieces
Diode: 69 pieces
Power source 100V/117V/220V/240V, 50Hz/60Hz
Power consumption At the time of no inputting: 65W
Electrical Appliance and Material Control Law: 310W
At the time of an 8ohm load Output power: 490W
Dimensions Width 475x height 170x depth of 418mm
Weight 22.7kg
Attachment: Remote commander RC-8
Remote control system Infrared pulse system
Power source DC 3V
Battery SUM-3(IEC name R6) 2 piece
The maximum Dimensions Width 64x height 149x depth of 18mm
Weight 140g (Battery includeds)
