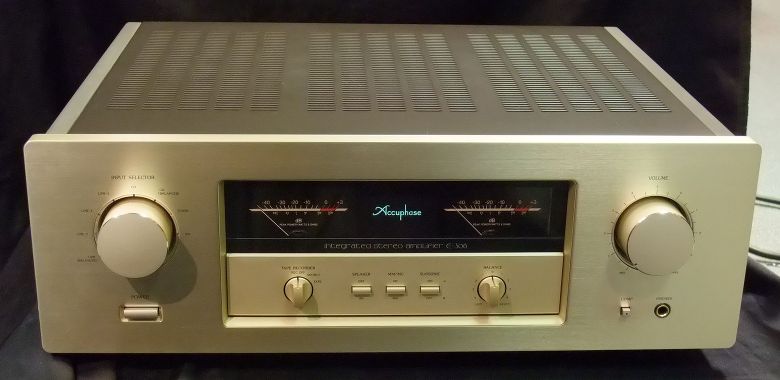

Accuphase金嗓子 金嗓子Accuphase E-306

上市参考售价:¥13,000

推出年代:1994.12

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
该功放是日本著名音响公司Accuphase公司在1994年推出的产品,价格合理、物有所值是它受欢迎的原因。设计精湛、制造精致、用料精制,是烧友仰慕它的原因。集成放大器其中通过的电流反馈放大器电路到功率放大器部分。放大器电路采用了该反馈中的电流的形式的输出信号的电流反馈放大器电路。其原理是通过降低反馈侧的输入端子的阻抗来检测电流,跨阻放大器,电流的IV转换,具有产生输出信号,由于反馈输入部的阻抗非常低的结构,使得它的相位旋转是不太可能发生。其结果,由于没有用于相位补偿很少需要,上升等,良好的动态特性,实现了自然的能量响应。另外,输出元件,电流增益线性的频率特性,已经赢得了各种性能的音频的高功率优越功率晶体管,例如通过在并行采用切换。电源单元和大约500VA的大电容量的大尺寸的电力变压器,配备有22,000μF×2的一个大容量的滤波电容器。线路放大器组成分立部分,基本金嗓子自己差动纯免费推挽输入的,输出级已成为光洁度设置在单端推挽型的射极跟随。MC型,考虑到的MM特征键入每个盒的,通过了具有专用的输入电路的均衡放大器。MM的输入,因为墨盒的输出电压时,输出阻抗高是由能够维持在整个频率等待一个高输入阻抗的场效应晶体管元件构成。另外,由于在MC在输入用于在低阻抗接收一个弱信号,构成由低噪声元件的差分输入电路,并且使噪声更少再生通过减少NFB环路的阻抗。为了防止信号通过切换诸如一个输入选择退化,为了构造在最短的直信号通路,它采用了逻辑继电器控制系统。所使用的继电器采用了电信行业的密封,接触是贴金横梁双系统,提供低接触电阻和高耐久性。平衡输入两种系统可用,我们可以平衡传输。音量控制采用具有高品质的卷和离合器的紧凑马达,使运行平稳。

器材规格

Form Integrated stereo Integrated Amplifier
Rated continuation average output
(Both channel simultaneous operation, 20Hz - 20kHz) 4ohm load: 140 W/ch
6ohm load: 120 W/ch
8ohm load: 100 W/ch
THD (both channel simultaneous operation) 0.04% (4-16-ohm load)
IM distortion 0.01%
Frequency response
(at the time of a rated continuation average output) Main/High Level Input: 20Hz-20000Hz+0 -0.2dB
Low Level Input: 20Hz-20000Hz+0.2 -0.5dB
Dumping factor 120 (8-ohm load, 50Hz)
The disc maximum input
(1kHz, 0.005% of distortion) MM input: 250mVrms (Rec Out)
MC input: 7.0mVrms (Rec Out)
Input sensitivity/input impedance
Input sensitivity Impedance
At the time of an Output power EIA (at the time of 1W output)
AD Input(MC): 0.11mV 0.01mV 100ohms
AD Input(MM): 3.9mV 0.39mV 47kohm
High Level Input: 113mV 11.3mV 20kohm
Balanced Input: 113mV 11.3mV 40kohm
Main Amp Input: 1.11V 112mV 20kohm
An Output voltage/Output load impedance
(at the time of a rated continuation average output) Pre Output: 1.11V/50 ohm
Tape Rec Output: 110mV/200 ohms (AD)
Gain Main Input -> Output: 28dB
High Level Input -> Pre Output: 20dB
AD Input (MM) -> Tape Rec Output: 29dB
AD Input (MC) -> Tape Rec Output: 60dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of a rated input S/N Input conversion noise
Main Input: 124dB -121dBV 102dB
High Level Input: 110dB -128dBV 83dB
Balanced Input: 90dB -108dBV 82dB
AD Input(MM): 85dB -132dBV 80dB
AD Input(MC): 70dB -146dBV 78dB
Loudness Compensation + 6dB (200Hz, Volume-30dB)
Subsonic Filter 25Hz, -12 dB/oct
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 4-16ohm
Stereo headphone Conformity impedance: 4ohms - 100ohms
Power source AC100V, 50Hz/60Hz
Power consumption At the time of no inputting: 50W
Electrical Appliance and Material Control Law: 290W
At the time of an 8ohm load Output power: 390W
Dimensions Width 475x height 170x depth of 418mm
Weight 20.2kg
Attachment: Remote commander RC-14
Remote control system Infrared pulse system
Power source DC 3V
Battery Two AA (SUM-3/R6)
The maximum Dimensions Width 45x height 136x depth of 18mm
Weight 85g (Battery includeds)
