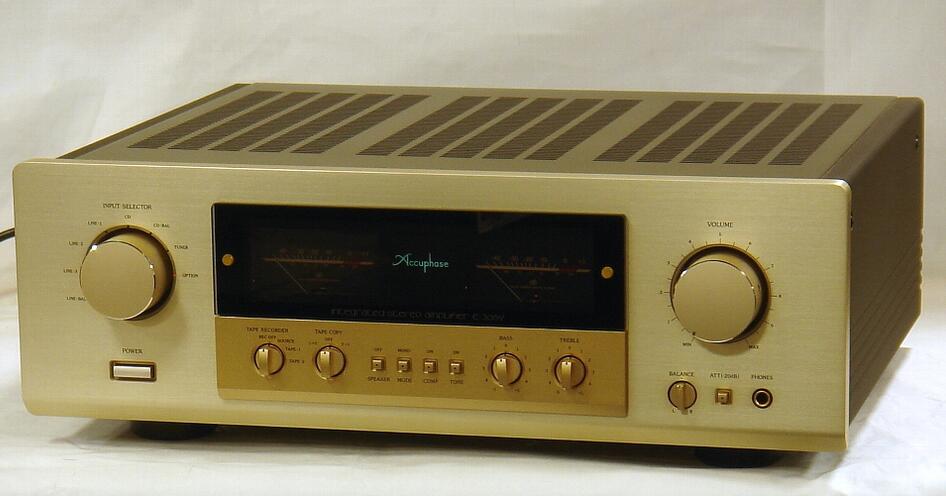

Accuphase金嗓子 金嗓子Accuphase E-306V

上市参考售价:¥14,000

推出年代:1997.12

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

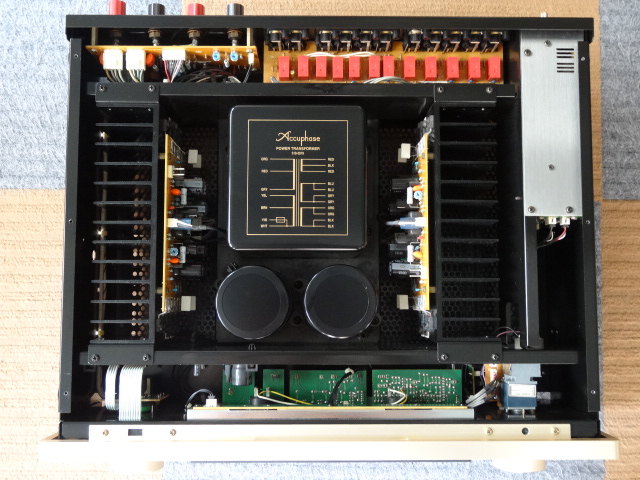

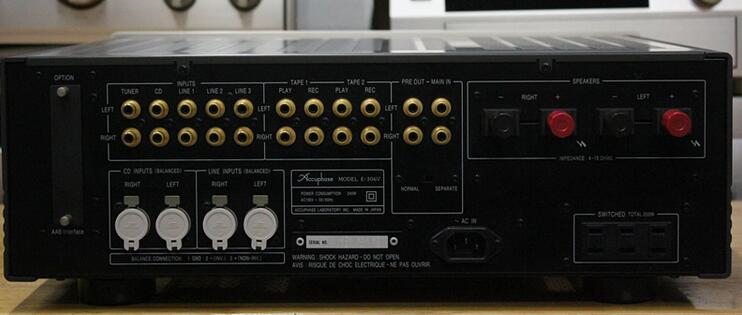

精致的E-306进一步成熟的升级版,深入集成放大器,抛光音质。功率放大器的一部分的输出元件,高频特性,电流增益线性度,具有优异的各种特性,如交换,已采用高输出音频的功率晶体管。配置在平行推挽这个元件,它一直是装在一个大的散热器中,一个有效的散热处理,以实现稳定的操作。功率放大部,既线路放大器部分的,已通过与没有相位旋转的电流反馈放大器电路。在该电路中,检测当前通过降低返回侧输入端子,在当前的跨阻抗放大器的I-V的阻抗 - 将创建一个(电流 - 电压)转换为输出信号。因为此反馈输入部的阻抗低,所以很难产生相位旋转,需要进行相位补偿是不小的。由此有可能以NFB,良好的动态特性的少量大大提高性能,实现了自然的能量响应。线路放大器部分包括由一个电流反馈放大器电路的分立零件的。基本已经完成在原来的一个相对简单的金嗓子,在纯免费推挽。这使得有可能减少每个阶段的相位补偿,我们的目标是进一步改善音质。要构成在最短的直线信号路径,它采用了继电器逻辑控制系统以电子方式控制继电器。继电器采纳了通信业,密封型继电器,金触点横梁双系统粘贴到提供低接触电阻和高耐久性。音调控制,先后通过了在全面的图形均衡器所使用的添加型有源滤波器系统。在该方法中,原平信号通过直链,使一特性在一个不同的,如果需要的话,我们是通过从平面的信号造成加速控制。即使在很厚的喇叭线都配备了剃须黄铜实木,可以对应的大尺寸扬声器端子。供电单元采用了约500VA的容量大的大型变压器。此外,滤波电容器配备有2个孩子的东西22,000μF。大尺寸的峰值功率计来监控输出功率。此计是一个对数压缩类型,可以看到一个宽的动态范围内的时间。分离前置放大器部分和功率放大部,配备有输入和输出端子,并用作一个独立的放大器的切换开关。平衡输入您已经配备了两套系统。音量控制和输入选择器的切换能够遥控器来。在后面板上,它配备了可以插入标准的AAB(金嗓子模拟总线)选件板插槽。

器材规格

Form Integrated stereo amplifier
Rated continuation average output
(Both channel operation, 20Hz - 20kHz) 140 W/ch (4ohms)
120 W/ch (6ohms)
100 W/ch (8ohms)
THD (both channel operation) 0.035% (4ohms - 16-ohm load)
IM distortion 0.01%
Frequency response
Main amp input: 20Hz-20kHz+0 -0.2 dB (at the time of a rated continuation average output)
2Hz-150kHz+0 -3.0dB (at the time of 1W output)
High Level input: 20Hz-20kHz+0 -0.2 dB (at the time of a rated continuation average output)
Dumping factor 100 (8-ohm load, 50Hz)
Input sensitivity/impedance
(An Output power / EIA1W output) High Level input: 113mV/11.2mV/20kohm
Balanced input: 113mV/11.2mV/40kohm
Main input: 1.13V/112mV/20kohm
An Output power/impedance Pre output: 1.13V/50 ohm (at the time of a rated continuation output)
Gain Main input -> output: 28dB
High Level input -> Pre output: 20dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of a rated input S/N Input conversion noise
Main amp input: 122dB -121dBV 100dB
High Level input: 104dB -123dBV 80dB
Balanced input: 88dB -107dBV 80dB
Tone control Low-pitched sound (300Hz): ±10dB (50Hz)
Loud sound (3kHz): ±10dB (20kHz)
Loudness Compensation + 6dB (200Hz, Volume-30dB)
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 4ohm-16ohm
Headphone jack Conformity impedance: 4ohms - 100ohms
Power source AC100V, 50Hz/60Hz
Power consumption 50W (at the time of no inputting)
240W (Electrical Appliance and Material Control Law)
385W (at the time of an 8-ohm load Output power)
The maximum Dimensions Width 475x height 170x depth of 418mm
Weight 20.5kg
Attachment: Remote commander RC-22
Remote control system Infrared pulse system
Power source DC 3V
Battery AA -- type and two pieces
The maximum Dimensions Width 45x height 136x depth of 18mm
Weight 85g (Battery 含む)
