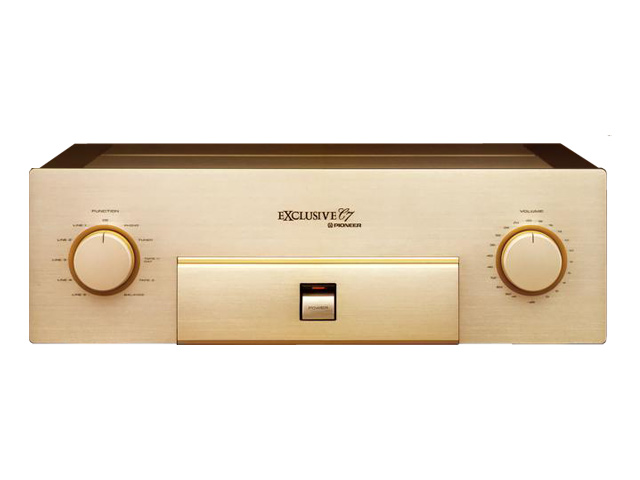

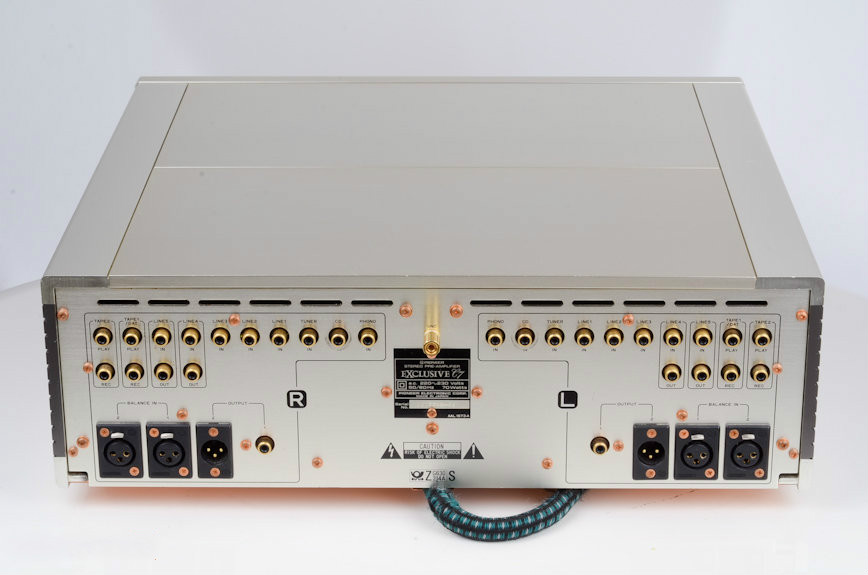

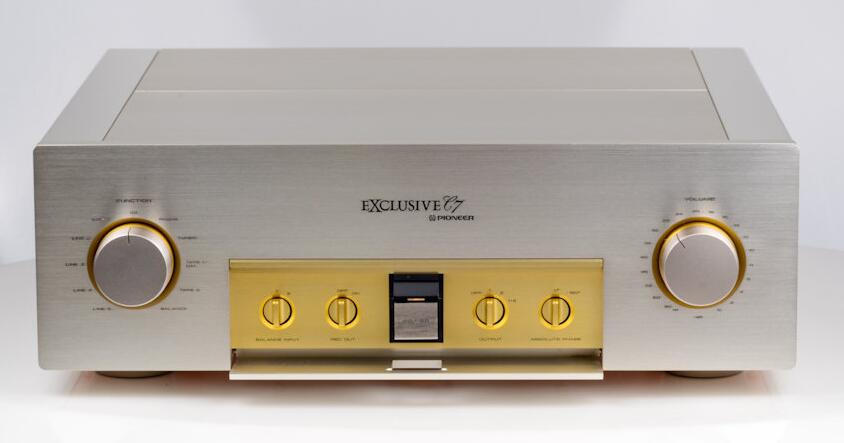

PIONEER EXCLUSIVE//TAD先锋 先锋Exclusive C7

上市参考售价:¥60,000

推出年代:1991

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo preamplifier
Input sensitivity/impedance Phono man month: 2.5mV / 50kohm
compact disk, Tuner, Line1, 2, 3, 4 and 5, Tape play1, Tape2:150mV/50kohm
Balance in 1, 2:150mV/600 ohm
An Output voltage/impedance Tape rec1, 2:150mV / 1kohm
Output1:1V/0.1 ohm
Output2(Balance): 1V/200 ohm
Maximum output level
(0.01% of a distortion, 20Hz - 20kHz) Tape rec1 and more than 2:12V (at the time of Phono)
Line4 and more than 5 out:12V (at the time of Phono)
More than Output1:5V / 600ohm
Output2(Balance): More than 3V / 600ohm. More than 5V/10kohm
Phono maximum permissible input Phono man month: 200mV or more (1kHz, 0.01% of distortion)
SN ratio Phono MM:87dB
Aux:105dB
Supply voltage AC100V, 50Hz/60Hz
Power consumption 70W (Electrical Appliance and Material Control Law)
Dimensions Width 460x height 158x depth of 446mm
Weight 27.5kg
