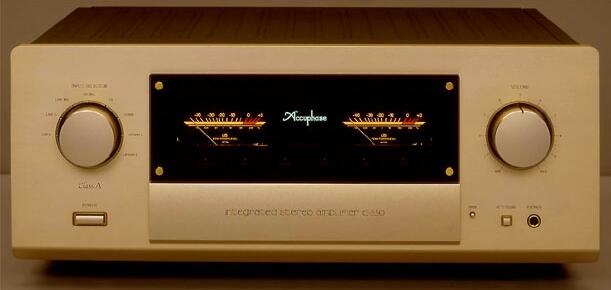

Accuphase金嗓子 金嗓子Accuphase E-530

上市参考售价:¥25,000

推出年代:2002.2

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Integrated stereo amplifier
Rated continuation average output
(Both channel operation, 20Hz - 20kHz) 150 W/ch (it restricts to 1 ohm and a music signal)
120 W/ch (2ohms)
60 W/ch (4ohms)
40 W/ch (6ohms)
30 W/ch (8ohms)
THD
(Both channel operation, 20Hz - 20kHz) 0.05% (2ohms)
0.02% (4ohm-16ohm)
IM distortion 0.01%
Frequency response High Level input/Main input:
20Hz-20kHz+0 -0.2 dB (at the time of a rated continuation average output)
2Hz-150kHz+0 -3.0dB (at the time of 1W output)
Dumping factor 120 (8-ohm load, 50Hz)
Input sensitivity/impedance
(An Output power / EIA1W output) High Level input: 61.7mV/11.3mV/20kohm
Balanced input: 61.7mV/11.3mV/40kohm
Main input: 0.617V/113mV/20kohm
An Output voltage/impedance Pre output: 0.617V/50 ohm (at the time of a rated continuation output)
Gain High Level input -> Pre output: 20dB
Main input -> output: 28dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of an Output power S/N Input conversion noise
High Level input: 106dB -131dBV 80dB
Balanced input: 92dB -117dBV 80dB
Main input: 118dB -122dBV 102dB
Tone control Low-pitched sound (300Hz): ±10dB (50Hz)
Loud sound (3kHz): ±10dB (20kHz)
Loudness Compensation + 6dB (100Hz, Volume-30dB)
Attenuator -20dB
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 2ohm-16ohm
Headphone jack Conformity impedance: 8ohms - 100ohms
Power source AC100V, 50Hz/60Hz
Power consumption 180W (at the time of no inputting)
280W (Electrical Appliance and Material Control Law)
250W (at the time of an 8-ohm load Output power)
The maximum Dimensions Width 475x height 196x depth of 422mm
Weight 25.0kg
