器材规格

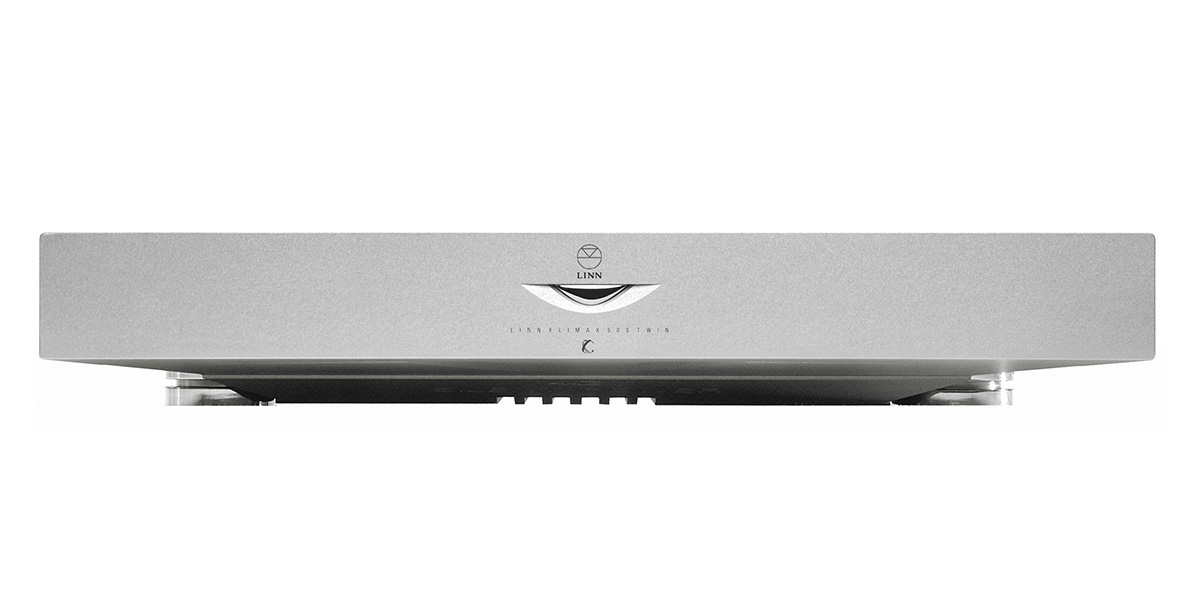

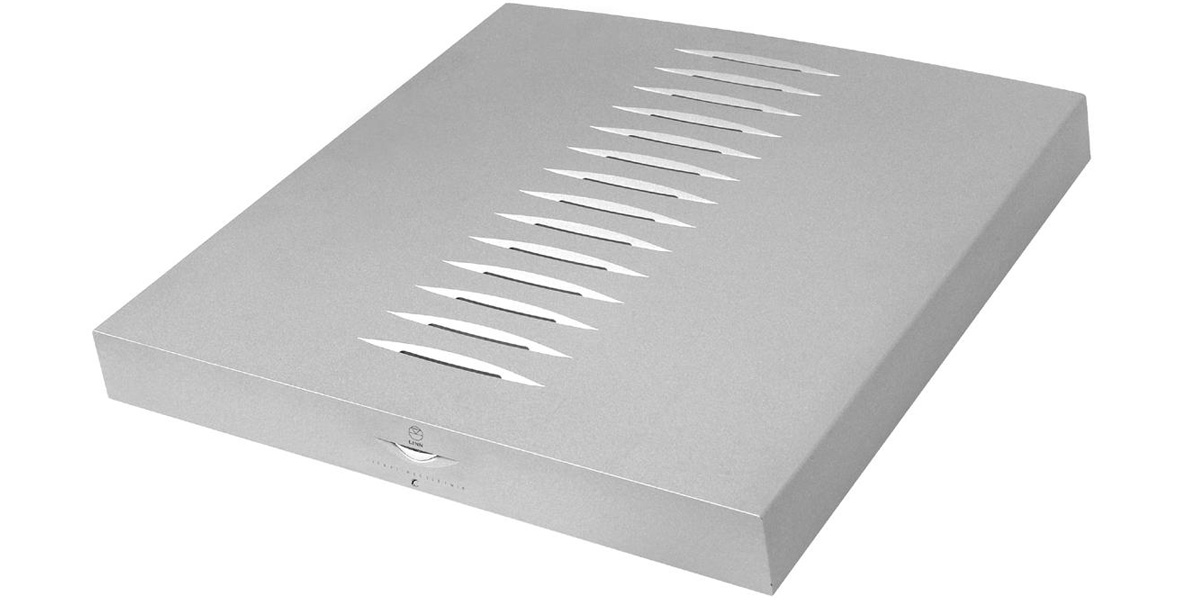

• Type Reference stereo power amplifier
• Mains supply voltage 100 – 120 V ac (±10%) 50 – 60 Hz (auto ranging) 200 – 240 V ac (±10%) 50 – 60 Hz
• Fuse 250 V, T6.3 A (not user replaceable) • Power consumption sleep 13 W active 30 W (typical)
• Output power 200 W into 4 Ω per channel 100 W into 8 Ω per channel • Maximum input power 1000 W
• Signal sensing threshold > 100 uV • Load tolerance Unconditionally stable into all loudspeaker loads
• Peak output voltage 40 V
• Finishes Silver, Black
• Accessories V-klip bracket for wall-mounting Back Panel Connectors
• Input Unbalanced (switch position in ) 2 x RCA phono (WBT) Balanced (switch position out) Balanced XLR
• Output Standard Neutrik Speakon 4-pole connector Optional Binding posts Input Electrical
• RCA outputs Input impedance 7k8 Ω Gain 28.6 dB Clipping level 1.05 Vrms
• XLR outputs Input impedance 7k8 Ω Gain 22.6 dB Clipping level 2.1 Vrms Audio Performance
• THD+N < 0.01 % • Frequency Response 5.3 Hz - 37 kHz
• Dimensions (H) 60 mm x (W) 350 mm x (D) 355 mm (H) 2.3 inches x (W) 15 inches x (D) 14.2 inches
• Weight 9 kg / 19.8 lb
• Mains supply voltage 100 – 120 V ac (±10%) 50 – 60 Hz (auto ranging) 200 – 240 V ac (±10%) 50 – 60 Hz
• Fuse 250 V, T6.3 A (not user replaceable) • Power consumption sleep 13 W active 30 W (typical)
• Output power 200 W into 4 Ω per channel 100 W into 8 Ω per channel • Maximum input power 1000 W
• Signal sensing threshold > 100 uV • Load tolerance Unconditionally stable into all loudspeaker loads
• Peak output voltage 40 V
• Finishes Silver, Black
• Accessories V-klip bracket for wall-mounting Back Panel Connectors
• Input Unbalanced (switch position in ) 2 x RCA phono (WBT) Balanced (switch position out) Balanced XLR
• Output Standard Neutrik Speakon 4-pole connector Optional Binding posts Input Electrical
• RCA outputs Input impedance 7k8 Ω Gain 28.6 dB Clipping level 1.05 Vrms
• XLR outputs Input impedance 7k8 Ω Gain 22.6 dB Clipping level 2.1 Vrms Audio Performance
• THD+N < 0.01 % • Frequency Response 5.3 Hz - 37 kHz
• Dimensions (H) 60 mm x (W) 350 mm x (D) 355 mm (H) 2.3 inches x (W) 15 inches x (D) 14.2 inches
• Weight 9 kg / 19.8 lb
