Acoustical Systems Acoustical Systems SMARTractor
上市参考售价:¥3,950
推出年代:2014
0.00
- (0人评价)
0%
0%
0%
0%
0%

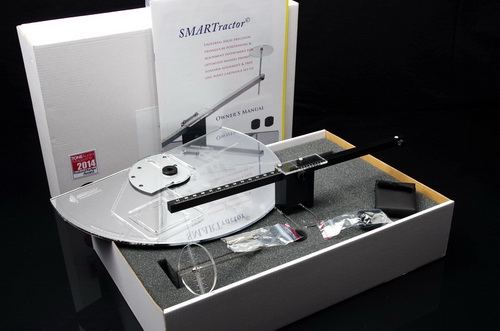

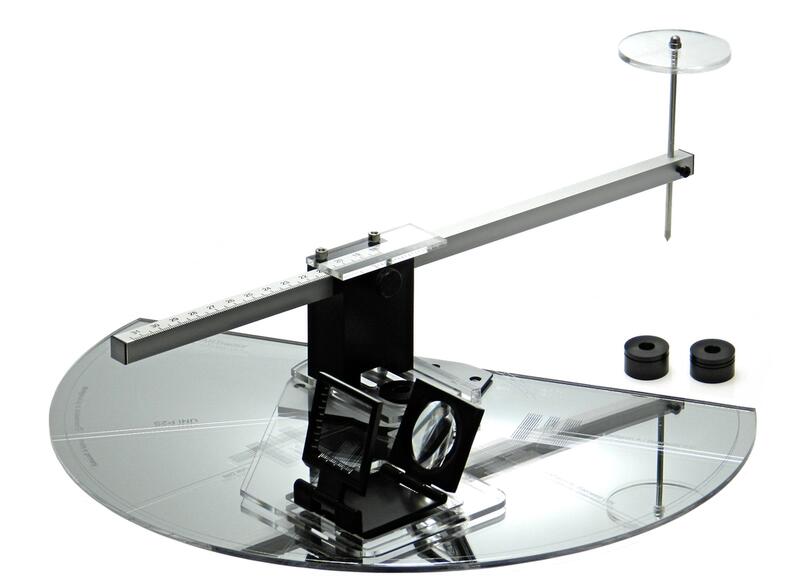

德国 Acoustical Systems The SMARTractor 黑胶调校臂规尺 规盘
这款产品应该是目前市面上最牛的唱机调较工具了,适用于多种黑胶唱机,内附中文使用说明书,方便使用。
一切都是为了精密度
SMARTractor透过转动可以选择要使用的调整曲线,它的本体就是一面大镜子,上面刻有让您调整对齐的刻度,镜子的厚度刚好是与180克黑胶唱片一样的3mm,方便用家调整VTA。您可别小看这面「镜子」,原厂特别采用德国制的顶级超硬XT镜面亚克力制作,材料则是来自世界级的亚克力供货商Evonik。上面的刻度全数采用CNC雷射刻印,比头发还细,如此才能达到最高的精确度。其他配件还包括唱臂的定位尺规(UNI-P2S)与用来检视唱头针尖的放大镜,另外还有为了因应不同的唱盘所附上的两款垫圈与架高唱臂定位尺规的小金属柱,力求将所有可能产生的误差消除殆尽。最后,原厂当然也并附上图文并茂的说明书,按图操作,将唱头与镜子上的线都拉齐对正就算是大功告成了。相信连最老练的调整达人用过之后,都会告诉您「凭经验不可靠,有工具最牢靠!」
这款产品应该是目前市面上最牛的唱机调较工具了,适用于多种黑胶唱机,内附中文使用说明书,方便使用。
一切都是为了精密度
SMARTractor透过转动可以选择要使用的调整曲线,它的本体就是一面大镜子,上面刻有让您调整对齐的刻度,镜子的厚度刚好是与180克黑胶唱片一样的3mm,方便用家调整VTA。您可别小看这面「镜子」,原厂特别采用德国制的顶级超硬XT镜面亚克力制作,材料则是来自世界级的亚克力供货商Evonik。上面的刻度全数采用CNC雷射刻印,比头发还细,如此才能达到最高的精确度。其他配件还包括唱臂的定位尺规(UNI-P2S)与用来检视唱头针尖的放大镜,另外还有为了因应不同的唱盘所附上的两款垫圈与架高唱臂定位尺规的小金属柱,力求将所有可能产生的误差消除殆尽。最后,原厂当然也并附上图文并茂的说明书,按图操作,将唱头与镜子上的线都拉齐对正就算是大功告成了。相信连最老练的调整达人用过之后,都会告诉您「凭经验不可靠,有工具最牢靠!」
器材规格
An unique bundle of features:
The SMARTractor comes with 5 (five) tangential curves combined in 1 (one) template.
the SMARTractor's template is made from 3mm (= same thickness as 180 gr LP) strong premium grade german XT mirrored acrylic supplied by Evonik.
no-error-possible single-point alignment with 3mm deep parallax (for ALL helping lines) - an extreme precise, easy and fast alignment.
super easy to use with 1-point fixed setting for every tangential curve.
all alignment lines are cnc-laser cut hairlines.
incorporates real glass aluminum-frame magnifier with automatic focus jig for unrivaled precise magnified view during alignment.
all 5 tangential alignments are based on true triangular positioning and thus are independent of effective length and thus suitable for ALL pivot tonearms, no matter what their effective length or mounting position.
The SMARTractor further comes with in-built direct mounting distance - P2S -measurement with 0.05mm accuracy.
The total of 5 tangential options of course includes the old audio phono standards set by Loefgren and Baerwald in the late 1930s and 1940s in both - IEC and DIN - norms.
* Loefgren A / Baerwald DIN
* Loefgren A / Baerwald IEC
* Loefgren B DIN
* Loefgren B IEC
The SMARTractor comes with 5 (five) tangential curves combined in 1 (one) template.
the SMARTractor's template is made from 3mm (= same thickness as 180 gr LP) strong premium grade german XT mirrored acrylic supplied by Evonik.
no-error-possible single-point alignment with 3mm deep parallax (for ALL helping lines) - an extreme precise, easy and fast alignment.
super easy to use with 1-point fixed setting for every tangential curve.
all alignment lines are cnc-laser cut hairlines.
incorporates real glass aluminum-frame magnifier with automatic focus jig for unrivaled precise magnified view during alignment.
all 5 tangential alignments are based on true triangular positioning and thus are independent of effective length and thus suitable for ALL pivot tonearms, no matter what their effective length or mounting position.
The SMARTractor further comes with in-built direct mounting distance - P2S -measurement with 0.05mm accuracy.
The total of 5 tangential options of course includes the old audio phono standards set by Loefgren and Baerwald in the late 1930s and 1940s in both - IEC and DIN - norms.
* Loefgren A / Baerwald DIN
* Loefgren A / Baerwald IEC
* Loefgren B DIN
* Loefgren B IEC
