JBL 杰宝JBL 4343B/BWX

上市参考售价:¥30,000

推出年代:1981

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

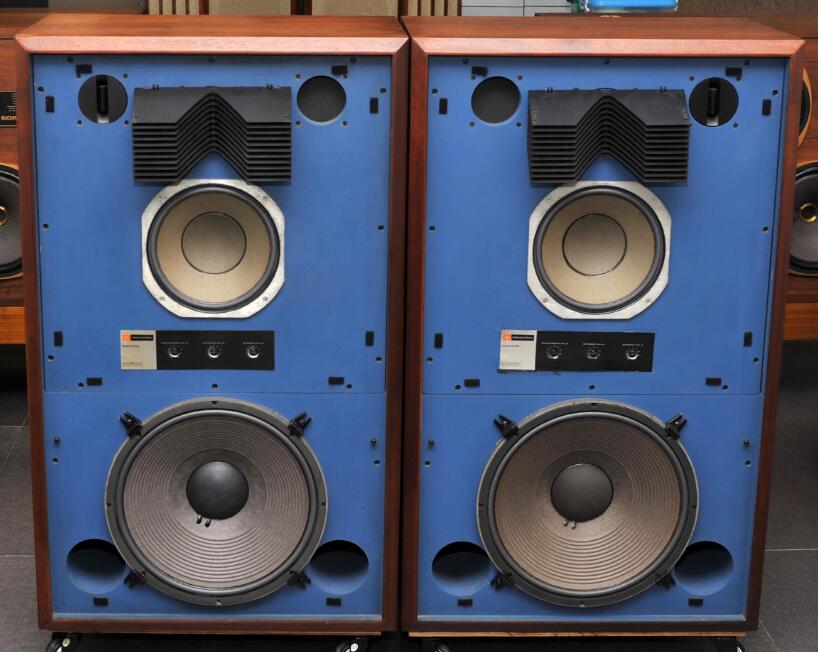

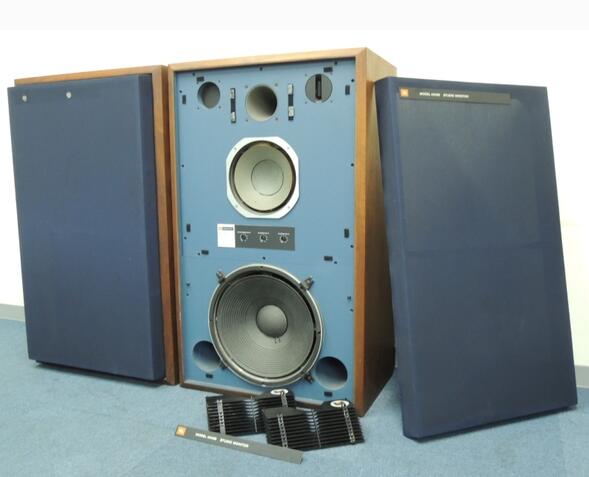

4343B诞生在1981年.当年售价120万日元.低音单元是2231H,中音单元是2121H,中高音单元是2420,号角是2307,扩散器是2308,超高音是2405.
4343BWX是4343AWX的改进型号,即把中低音和低音单元由原来的钴磁改成了铁氧体磁铁。
中高音和高音驱动器维持原来不变。但是你不要小看了这样一个改动,他改变了4343AWX的
声底偏刚猛的声音走向,低音感觉更加蓬松,中音温暖柔软。从功放搭配角度上来说也更

具亲和力。

                                                                                                                                                        --------摘自网路

器材规格

Scheme 4 ways, 4 loudspeaker bass-reflex scheme, and a bookshelf type
Unit For low-pass: 2231H
For inside low-pass: 2121H
For mid-high ranges: Horn type (2420+2307)
For high regions: Horn type (2405)
Play frequency band 35Hz - 20kHz (±3dB)
Cross over frequency 300Hz, 1250Hz, 9500Hz
Directivity 60 degrees x 30 degrees (16kHz)
Impedance 8ohms
Output sound pressure level 93dB/W/m
Allowable input 75W (at the time of a ネットー workpiece)
75W (300Hz or less)
75W (300Hz or more)
Enclosure dimension Woofer: 156L
Mid Woofer: 14L
Dimensions Width 635x height 1051x depth of 435mm
Weight 83.9kg
