                    器材规格

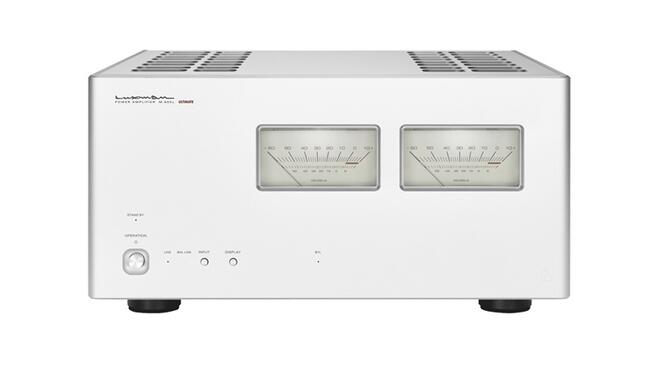

                    	Luxman M-900U Specifications
Rated output 150W +150 W (8Ω) / stereo at the time, 300W +300 W (4Ω) / stereo at the time,
600W (8Ω) / monaural
Instantaneous maximum output 1200W +1200 W (1Ω) / stereo at the time, 2400W (2Ω) / monaural
Input sensitivity 1.24V/150W (8Ω), GAIN 29.0dB
Input impedance Unbalanced 51kΩ, 34kΩ balance
Frequency characteristic 20Hz ~ 20kHz (+0,-0.1dB), 1Hz ~ 130kHz (+0,-3.0dB)
Total harmonic distortion Less than 0.008% (1kHz/8Ω), 0.1% or less (20Hz ~ 20kHz/8Ω)
S / N Ratio (IHF-A) 117dB
Amplifier circuit ODNF4.0
Output Configuration Bipolar 4 parallel push-pull × 2
Power transformer EI type 1,250 VA
Damping factor 710
Power-supply voltage AC100V (50 / 60Hz)
Power consumption 520W (under the provisions of the Electrical Appliance and Material Safety Law), 280W (no signal), 1.0W (standby)
External dimensions 440 (width) × 224 (height) × 485 (depth) mm, depth includes front knob 2mm, the rear terminal 38mm
Weight 48.0kg (body)
                Rated output 150W +150 W (8Ω) / stereo at the time, 300W +300 W (4Ω) / stereo at the time,
600W (8Ω) / monaural
Instantaneous maximum output 1200W +1200 W (1Ω) / stereo at the time, 2400W (2Ω) / monaural
Input sensitivity 1.24V/150W (8Ω), GAIN 29.0dB
Input impedance Unbalanced 51kΩ, 34kΩ balance
Frequency characteristic 20Hz ~ 20kHz (+0,-0.1dB), 1Hz ~ 130kHz (+0,-3.0dB)
Total harmonic distortion Less than 0.008% (1kHz/8Ω), 0.1% or less (20Hz ~ 20kHz/8Ω)
S / N Ratio (IHF-A) 117dB
Amplifier circuit ODNF4.0
Output Configuration Bipolar 4 parallel push-pull × 2
Power transformer EI type 1,250 VA
Damping factor 710
Power-supply voltage AC100V (50 / 60Hz)
Power consumption 520W (under the provisions of the Electrical Appliance and Material Safety Law), 280W (no signal), 1.0W (standby)
External dimensions 440 (width) × 224 (height) × 485 (depth) mm, depth includes front knob 2mm, the rear terminal 38mm
Weight 48.0kg (body)
