器材规格

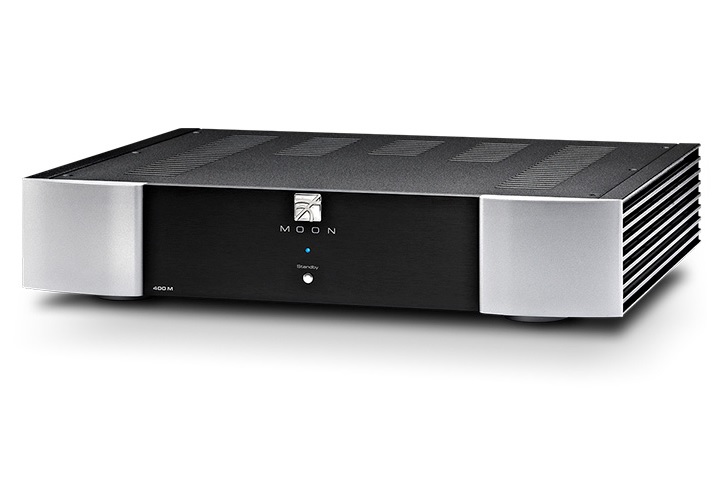

Nēo 400M Detailed Specifications
Type Solid State
Configuration Mono - Differential
Power Supply Transformers 400VA
Power Supply Capacitance 85,000µF
Class Of Operation A/AB
Balanced Inputs XLR - 1
Single-ended Inputs RCA - 1
Input Device Type J-FETs
Input Impedance 47.5KΩ
Input Sensitivity 800mV RMS
Output Device Type Bipolars - 8
Output Binding Posts 1 pair - 5-way, Gold-plated, Shielded
Output Power @ 8Ω 400 Watts
Output Power @ 4Ω 650 Watts
Frequency Response 10Hz - 125kHz (+0/-3dB)
Output Impedance < 0.01Ω
Damping Factor (static) > 800
Gain 36dB
Signal-to-noise Ratio 106dB @ full power
Maximum Output Voltage 60 Volts
Slew Rate 60 V/µs
Maximum Current - Peak 56 amperes
Maximum Current - Continuous 26 amperes
IMD Unmeasureable
THD (20Hz - 20kHz @ 1 watt) 0.02%
THD (20Hz - 20kHz @ 400 watts) 0.05%
12 Volt Trigger Input/Output Operation Direct Logic (0V = off, 12V=on) using a 3.5mm mono jack with an output impedance of 1000Ω and current requirement of 12mA
RS-232 Port 9-pin female DB connector
Power Consumption @ idle 36 Watts
AC Power Requirements 120V / 60Hz 220-240V / 50Hz
Fuse Replacement 120V / 220-240V 8.0A long fast blow / 4.0 long fast blow
Shipping weight 34 lbs / 15 kgs
Dimensions (W x H x D) 16.9 x 3.5 x 14.0 in. (42.9 x 8.9 x 35.6 cm.)
¥47000/对
Type Solid State
Configuration Mono - Differential
Power Supply Transformers 400VA
Power Supply Capacitance 85,000µF
Class Of Operation A/AB
Balanced Inputs XLR - 1
Single-ended Inputs RCA - 1
Input Device Type J-FETs
Input Impedance 47.5KΩ
Input Sensitivity 800mV RMS
Output Device Type Bipolars - 8
Output Binding Posts 1 pair - 5-way, Gold-plated, Shielded
Output Power @ 8Ω 400 Watts
Output Power @ 4Ω 650 Watts
Frequency Response 10Hz - 125kHz (+0/-3dB)
Output Impedance < 0.01Ω
Damping Factor (static) > 800
Gain 36dB
Signal-to-noise Ratio 106dB @ full power
Maximum Output Voltage 60 Volts
Slew Rate 60 V/µs
Maximum Current - Peak 56 amperes
Maximum Current - Continuous 26 amperes
IMD Unmeasureable
THD (20Hz - 20kHz @ 1 watt) 0.02%
THD (20Hz - 20kHz @ 400 watts) 0.05%
12 Volt Trigger Input/Output Operation Direct Logic (0V = off, 12V=on) using a 3.5mm mono jack with an output impedance of 1000Ω and current requirement of 12mA
RS-232 Port 9-pin female DB connector
Power Consumption @ idle 36 Watts
AC Power Requirements 120V / 60Hz 220-240V / 50Hz
Fuse Replacement 120V / 220-240V 8.0A long fast blow / 4.0 long fast blow
Shipping weight 34 lbs / 15 kgs
Dimensions (W x H x D) 16.9 x 3.5 x 14.0 in. (42.9 x 8.9 x 35.6 cm.)
¥47000/对
