器材规格
Form

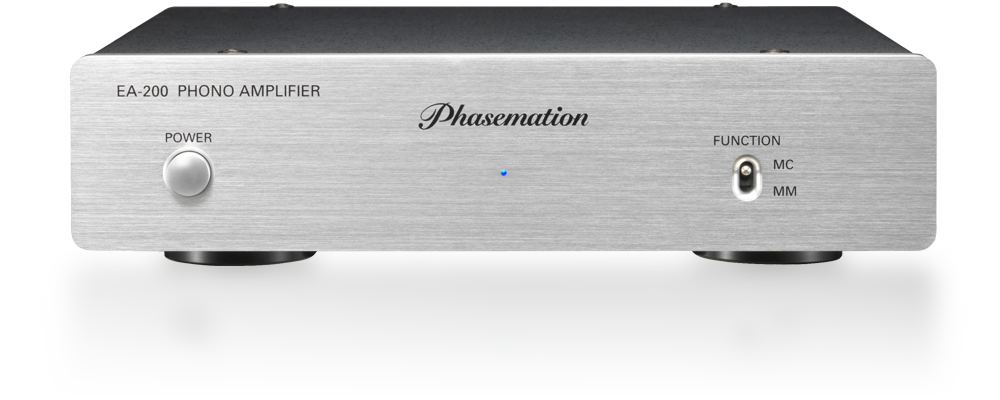

MM/MC Non-Feedback Type Equalizer Amp
MM
MC
Input Sensitivity
2.5mV
0.12mV
Input Impedance
47 k-ohm
470 ohm
Gain
38dB
63dB
Input Equivalent S/N ratio
–124dbV
–140dBV
Maximum Allowed Input
90mV
4mV
Rated Output Voltage
200mV (1kHz)
Rear Curve Deviation
±0.3dB (20Hz to 20kHz)
Output Impedance
250 ohm
Channel Separation
90dB or more (20Hz to 20kHz for MM or MC)
Power Consumption
2W (115 or 220 VAC, 50/60 Hz)
Input/Output Terminals
Machined gold-plated terminal
External Measurements (mm)
220 (width) x 57 (height) x 228 (depth) with terminals
Weight
2.6kg
MM/MC Non-Feedback Type Equalizer Amp
MM
MC
Input Sensitivity
2.5mV
0.12mV
Input Impedance
47 k-ohm
470 ohm
Gain
38dB
63dB
Input Equivalent S/N ratio
–124dbV
–140dBV
Maximum Allowed Input
90mV
4mV
Rated Output Voltage
200mV (1kHz)
Rear Curve Deviation
±0.3dB (20Hz to 20kHz)
Output Impedance
250 ohm
Channel Separation
90dB or more (20Hz to 20kHz for MM or MC)
Power Consumption
2W (115 or 220 VAC, 50/60 Hz)
Input/Output Terminals
Machined gold-plated terminal
External Measurements (mm)
220 (width) x 57 (height) x 228 (depth) with terminals
Weight
2.6kg
