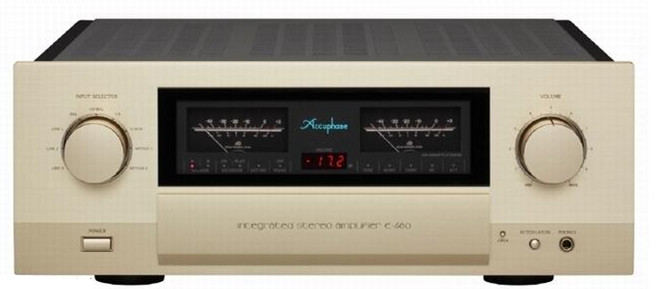

Form Integrated stereo amplifier
Continuation average output (both channel operation)
20Hz - 20kHz, 0.02% of a distortion 250 W/ch (4ohms)
170 W/ch (8ohms)
THD (both channel operation)
0.25W - a continuation output, 20Hz - 20kHz 0.02% (4ohms - 16-ohm load)
IM distortion 0.01%
Frequency response
Main amp input: 20Hz-20kHz+0 -0.2dB (at the time of an Output power)
2Hz-150kHz+0 -3.0dB (at the time of 1W output)
High Level input: 20Hz-20kHz+0 -0.2dB (at the time of an Output power)
Low Level input: 20Hz-20kHz+0.2 -0.5dB (at the time of an Output power)
Dumping factor 120 (8-ohm load, 50Hz)
Input sensitivity/impedance
(An Output power / EIA1W output) AD input(MC): 0.15mV/0.011 mV/100 ohms
AD input(MM): 4.65mV/0.35mV/47kohm
High Level input: 147mV/11.2mV/20kohm
Balanced input: 147mV/11.2mV/40kohm
Main input: 1.47v/112mV/20kohm
The Disc maximum input
(Rec out, 1kHz, 0.005% of distortion) MM:300mVrms
MC:8.0mVrms
An Output power/impedance Pre output: 1.47V/50 ohm
Tape Rec output: 125mV/200 ohms (AD)
Gain Main input -> output: 28dB
High Level input -> Pre output: 20dB
AD input (MM) -> Tape rec output: 30dB
AD input (MC) -> Tape rec output: 60dB
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of a rated input S/N Input conversion noise
Main amp input: 130dB -127dBV 108dB
High Level input: 113dB -130dBV 84dB
Balanced input: 90dB -108dBV 84dB
AD input(MM): 90dB -137dBV 80dB
AD input(MC): 75dB -151dBV 80dB
Tone control Low-pitched sound (300Hz): ±10dB (50Hz)
Loud sound (3kHz): ±10dB (20kHz)
Loudness Compensation + 6dB (100Hz, Volume-30dB)
Subsonic Filter 17Hz, -12 dB/oct
Power meter Logarithm compression type peak level display
dB scale and the output Direct reading at the time of 8-ohm load
Load impedance 4ohm-16ohm
Headphone jack Conformity impedance: 4ohms - 100ohms
Power source AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption 65W (at the time of no inputting)
390W (Electrical Appliance and Material Control Law)
620W (at the time of an 8-ohm load Output power)
The maximum Dimensions Width 475x height 180x depth of 423mm
Weight 28.0kg
Attachment: Remote commander RC-10
Remote control system Infrared pulse system
Power source DC 3V
Battery UM-4 (an IEC name, R03), two pieces
The maximum Dimensions Width 66x height 175x depth of 20mm
Weight 190g (Battery includeds)
