器材规格

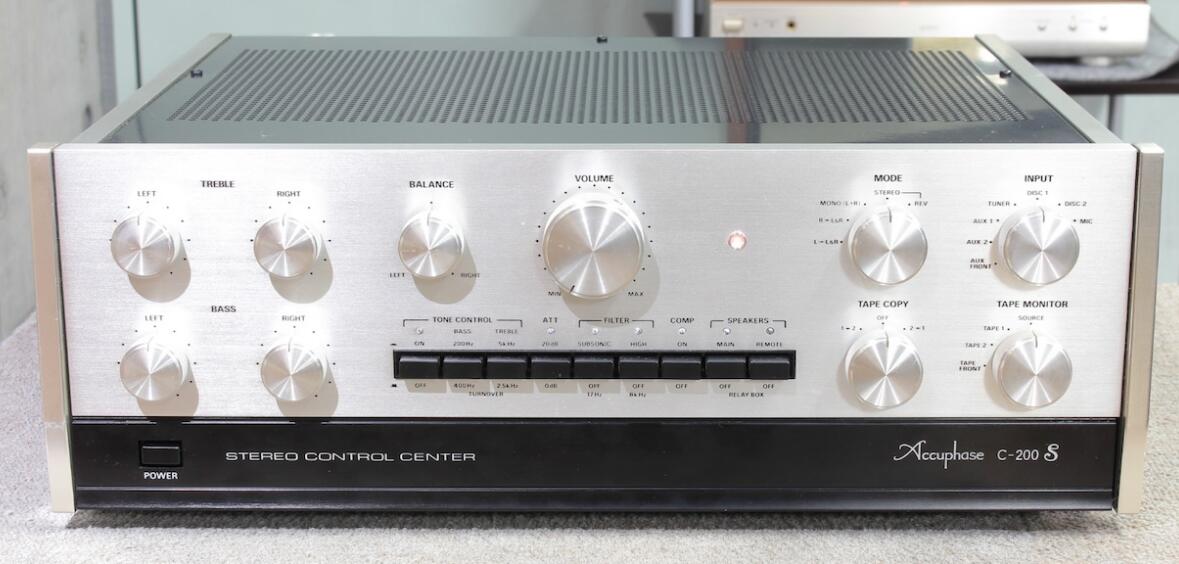

Form Stereo control center
Frequency response High-level input: 20Hz - 20000Hz, and +0 -0.2 dB
DISC input: 20Hz - 20000Hz, ±0.2dB
THD 0.01% (by 20Hz - 20kHz, and Output power)
Input sensitivity/input impedance DISC1:2-6mV/30kohm, 47kohm, 100kohm
DISC2:2-6mV/47kohm
Media-Interface-Connector: 2mV/47kohm
Tuner, AUX1, 2, Front, Tape Play1, 2, Front:200mV/47kohm
An Output power/Output load impedance Main Output: 2.0V/200 ohm (at the time of Volume maximum and the rated input)
Tape Rec Output1, 2, Front: 200mV/200 ohms
Maximum-except-take-off level More than 10V (distortion 0.01%, 20Hz - 20kHz)
The disc maximum input 400mV - 1.2Vrms (1kHz, 0.01% of distortion)
* 400mV is the DISC level-control maximum (equalizer gain 40dB).
※1. 2V is the DISC level-control minimum (equalizer gain 30dB).
Minimum load impedance Output: 5.0kohm
Tape Rec: 10.0kohm
Gain Tuner, AUX, and a Tape Play input
Tape Rec Output:
Output:
Headphone: 0dB
20dB
16dB DISC1, 2, and a Media Interface Connector input
Tape Rec Output:
Output:
Headphone: 40dB
60dB
56dB DISC1 and 2 can be adjusted to level regulation and -10dB.
S/N / input conversion noise
(A rated input, IHF-A, input short-circuit) High-level input: 106dB / -120dBV
DISC, Media Interface Connector:81dB /, -135dBV
Volume control linkage error Less than 1dB
Tone control
Low-pass : Changing point 400Hz :
200Hz: ±10dB (100Hz)
±10dB (50Hz)
High region : Changing point 2.5kHz :
5kHz: ±10dB (10kHz)
±10dB (20kHz) 2dB each step
DISC low enhancement (massive compensation circuit) They are 0dB, +0.5dB, and +1dB (100Hz) to the RIAA standard characteristic.
Attenuator -20dB
Compensation (volume control-30dB) 50Hz, 250Hz : +9dB
Filter Subsonic Filter: 17Hz, 18 dB/oct
A high filter: 8kHz, 12 dB/oct
Headphone Output load impedance: 0.3ohm
Output (8ohm load): 0.8W (1kHz, 0.03% of distortion)
The semiconductor used Transistor: 99 pieces
FET: Eight pieces
Diode: 28 pieces
Power source AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption 60W
a Dimensions (a piece -- it includeds) Width 445x height 160x depth of 355mm
Weight 14kg
Option Relay box R-1 (12,000yen)
Wood case A-2 (15,000yen)
Frequency response High-level input: 20Hz - 20000Hz, and +0 -0.2 dB
DISC input: 20Hz - 20000Hz, ±0.2dB
THD 0.01% (by 20Hz - 20kHz, and Output power)
Input sensitivity/input impedance DISC1:2-6mV/30kohm, 47kohm, 100kohm
DISC2:2-6mV/47kohm
Media-Interface-Connector: 2mV/47kohm
Tuner, AUX1, 2, Front, Tape Play1, 2, Front:200mV/47kohm
An Output power/Output load impedance Main Output: 2.0V/200 ohm (at the time of Volume maximum and the rated input)
Tape Rec Output1, 2, Front: 200mV/200 ohms
Maximum-except-take-off level More than 10V (distortion 0.01%, 20Hz - 20kHz)
The disc maximum input 400mV - 1.2Vrms (1kHz, 0.01% of distortion)
* 400mV is the DISC level-control maximum (equalizer gain 40dB).
※1. 2V is the DISC level-control minimum (equalizer gain 30dB).
Minimum load impedance Output: 5.0kohm
Tape Rec: 10.0kohm
Gain Tuner, AUX, and a Tape Play input
Tape Rec Output:
Output:
Headphone: 0dB
20dB
16dB DISC1, 2, and a Media Interface Connector input
Tape Rec Output:
Output:
Headphone: 40dB
60dB
56dB DISC1 and 2 can be adjusted to level regulation and -10dB.
S/N / input conversion noise
(A rated input, IHF-A, input short-circuit) High-level input: 106dB / -120dBV
DISC, Media Interface Connector:81dB /, -135dBV
Volume control linkage error Less than 1dB
Tone control
Low-pass : Changing point 400Hz :
200Hz: ±10dB (100Hz)
±10dB (50Hz)
High region : Changing point 2.5kHz :
5kHz: ±10dB (10kHz)
±10dB (20kHz) 2dB each step
DISC low enhancement (massive compensation circuit) They are 0dB, +0.5dB, and +1dB (100Hz) to the RIAA standard characteristic.
Attenuator -20dB
Compensation (volume control-30dB) 50Hz, 250Hz : +9dB
Filter Subsonic Filter: 17Hz, 18 dB/oct
A high filter: 8kHz, 12 dB/oct
Headphone Output load impedance: 0.3ohm
Output (8ohm load): 0.8W (1kHz, 0.03% of distortion)
The semiconductor used Transistor: 99 pieces
FET: Eight pieces
Diode: 28 pieces
Power source AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption 60W
a Dimensions (a piece -- it includeds) Width 445x height 160x depth of 355mm
Weight 14kg
Option Relay box R-1 (12,000yen)
Wood case A-2 (15,000yen)
