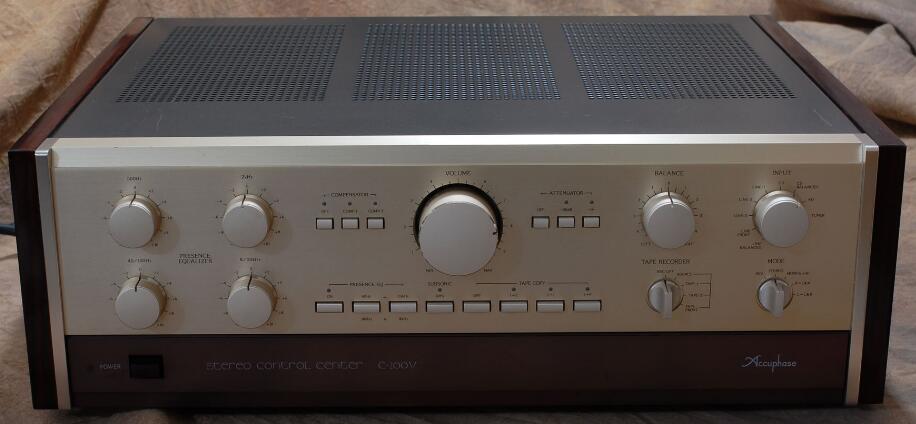

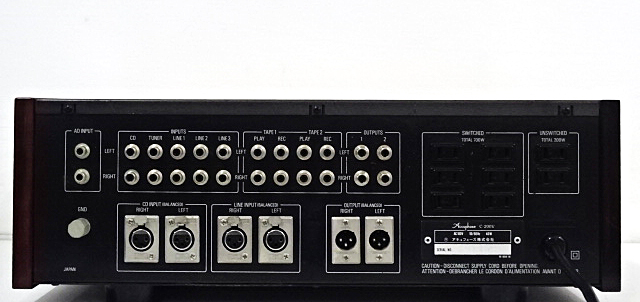

Accuphase金嗓子 金嗓子Accuphase C-200V

上市参考售价:¥17,500

推出年代:1987.7

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo control center
Frequency response
CD, Line (Balanced Input) : 1.0Hz - 400000Hz, and +0 -3.0 dB
20Hz - 20000Hz, and +0 -0.2 dB
CD, Line, Tuner, Tape Play :
(Unbalanced Input) 1.0Hz - 500000Hz, and +0 -3.0 dB
20Hz - 20000Hz, and +0 -0.2 dB
AD(Unbalanced Input): 20Hz - 20000Hz, ±0.2dB
THD 0.005% (with all the input terminals)
Input sensitivity/input impedance AD MM: 4.0mV/47kohm
AD MC: 0.13mV/10ohm, 30ohm, 100ohm
Unbalanced: 126mV/20kohm
Balanced: 126mV/40kohm (20kohm/20kohm)
An Output power/Output load impedance Output(Balanced): 2.0V/50 ohm (25ohm/25ohm, XLR type connector)
Output(Unbalanced): 2.0V/1 ohm (RCA phono jack)
Tape Rec: 126mV/200 ohms (at the time of AD RCA phono jack)
Headphone Conformity impedance: 4-100ohms
Signal to noise ratio AD MM:90dB
AD MC:74dB
Unbalanced:110dB
Balanced:97dB
Maximum-except-take-off level
(0.005% of a distortion, 20Hz - 20kHz) Output(Balanced): 8.0V (XLR type connector)
Output(Unbalanced): 8.0V (RCA phono jack)
Tape Rec: 9.0V (at the time of AD)
The AD maximum inlet pressure (1kHz, 0.005% of distortion) AD MM:300mV
AD MC:9.5mV
Minimum load impedance Output (Balanced): 600ohms (300ohm/300ohm)
Output(Unbalanced): 1kohm
Tape Rec: 10kohm
Gain
CD, Line, Tuner, Tape Play
(Unbalanced) ->Output (Unbalanced): 24dB
->Output (Balanced): 24dB
->Rec Output: 0dB
CD, Line (Balanced) ->OUtput (Unbalanced): 24dB
->Output (Balanced): 24dB
->Rec Output: 0dB
AD MM: ->Output (Unbalanced): 54dB
->Output (Balanced): 54dB
->Rec Output: 30dB
AD MC: ->Output (Unbalanced): 84dB
->Output (Balanced): 84dB
->Rec Output: 60dB
Presence equalizer Four band systems
Frequency: 8kHz [ a 40Hz/100Hz change type, 500Hz, 2kHz, and ]/20Hz change type
Variable range: ±10dB
Loudness Compensation (volume control -30dB) COMP-1:+3dB(100Hz)
COMP-2: +8dB (100Hz), +6dB (20kHz)
Subsonic Filter 10Hz, -18 dB/oct
Attenuator - 20dB-infinity
The semiconductor used 117Tr, 20FET, 28IC, 104Di
Power source 100V, 117V, 220V, 240V, 50Hz/60Hz
Power consumption 40W
Dimensions the width 475x height 170(piece -- it includeds) x depth of 375mm
Weight 15.5kg
