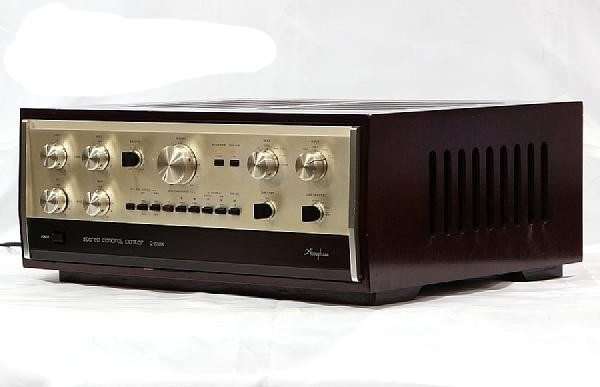

Accuphase金嗓子 金嗓子Accuphase C-200X

上市参考售价:¥13,500

推出年代:1980.6

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
June, 1980—— ¥13500
January, 1983—— ¥14000

器材规格

Form Stereo control center
Frequency response (new IHF) highlevel: 20Hz-20kHz+0 -0.2dB
disc: 20Hz-20kHz±0.2dB
THD (new IHF) 0.005% or less (20Hz - 20kHz)
Input sensitivity/impedance
(An Output power / new IHF0.5V output) disc1, discFront MM:2.0mV/0.5mV/100, 47k and 82k, 150kohm (head amp off)
disc2 MM: 2.0mV/0.5mV/47kohm (head amp off)
disc MC: 0.1mV/0.025 mV/100 ohms (head amp on)
tuner, aux, and tape play:126mV/31.5mV/47kohm
An Output power/Output load impedance output: 2.0V/2 ohm
tape rec: 126mV/200 ohms (at the time of a disc input)
Headphone jack Output load impedance: 0.3ohm
Output: 0.25W (8 ohms, 1kHz, 0.01% of distortion)
S/N
disc(head amp off): 85dB (a rated input, input short-circuit, A compensation)
82dB (new IHF)
disc(head amp on): 72dB (a rated input, input short-circuit, A compensation)
74dB (new IHF)
tuner, aux, tape play : 110dB (a rated input, input short-circuit, A compensation)
88dB (new IHF)
Input conversion noise disc(head amp off):-139dBV
disc(head amp on):-152dBV
tuner, aux, tape play:-128dBV
Maximum-except-take-off level 10V (0.005% or less of a distortion, 20Hz - 20kHz)
The disc maximum input
(1kHz, 0.005% or less of distortion) head amp off:400mVrms
head amp on:20mVrms
Minimum load impedance output: 1kohm
tape rec: 10kohm
Gain
tuner, aux, tape play-> tape rec:0dB
output:24dB
disc(head amp off) -> tape rec:36dB
output: 60dB (at the time of head amp on: +26dB)
Tone control The step type by 11 contact rotary switch
Turnover frequency Low-pitched sound: 200Hz, 500Hz
Loud sound: 2kHz, 7kHz
Low-pitched sound 500Hz : ±10dB (100Hz), a 2dB step
200Hz : ±10dB (35Hz), a 2dB step
Loud sound 2kHz : ±10dB (10kHz), a 2dB step
7kHz : ±10dB (35kHz), a 2dB step
Loudness Compensation
(Volume -30dB) comp1:+3dB(100Hz)
comp of 2:+10dB (100Hz), +5dB (20kHz)
Filter Subsonic Filter: 17Hz, -12 dB/oct
A high filter: 8kHz-12 dB/oct
Attenuator -20dB
The semiconductor used Transistor: 102 pieces
FET: 29 pieces
IC: 11 pieces
Diode: 50 pieces
Power source AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption 80W
a Dimensions (a piece -- it includeds) At usually, the time: Width 445x height 160x depth of 373mm
At the time of wood case wearing: Width 466x height 190x depth of 385mm
Weight 13.4kg
Option Wood case A-8 (16,000yen)
