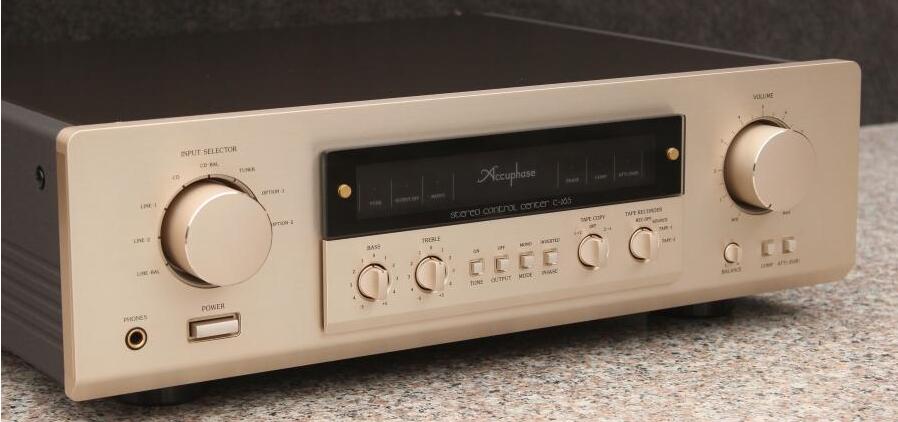

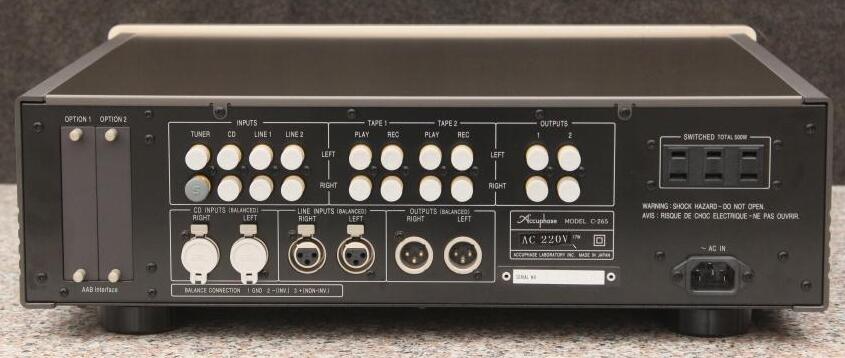

Accuphase金嗓子 金嗓子Accuphase C-265

上市参考售价:¥16,500

推出年代:1997.3

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo control amplifier
Frequency response
Balanced, Unbalanced : 3Hz-350kHz+0 -3.0 dB
20Hz-20kHz+0 -0.2 dB AD input: 20Hz-20kHz±0.2dB
THD 0.005%
Input sensitivity/impedance
(An Output power / 0.5V output) AD MM: 8.9mV/2.2mV/47kohm
AD MC: 0.25mV/0.063 mV/10ohm, 30ohm, a 100-ohm change
Balanced: 252mV/63mV/40kohm
Unbalanced: 252mV/63mV/20kohm
An Output power/impedance Balanced, Unbalanced output:2V/50 ohm
Tape rec (at the time of AD input): 252mV/320 ohms
S/N, input conversion noise
Input short-circuit and A-compensation EIA S/N
At the time of an Output power S/N Input conversion noise
AD MM: 92dB -133dBV 85dB
AD MC: 75dB -147dBV 80dB
Balanced: 106dB -118dBV 99dB
Unbalanced: 105dB -117dBV 99dB
Maximum-except-take-off level
(Distortion 0.005%, 20Hz - 20kHz) Balanced, Unbalanced output:6.0V
Tape rec:6.0V
Minimum load impedance Balanced, Unbalanced output: 600ohms
Tape rec: 10kohm
Gain Balanced, Unbalanced input -> Balanced, Unbalanced output: 18dB
AD MM input -> Balanced, Unbalanced output: 47dB
AD MC input -> Balanced, Unbalanced output: 78dB
Tone control Low-pitched sound (300Hz): ±10dB (50Hz)
Loud sound (3kHz): ±10dB (20kHz)
Loudness Compensation + 6dB (100Hz, Volume-30dB)
Attenuator -20dB
Headphone jack Conformity impedance: 4ohms - 100ohms
Power source AC100V, 50Hz/60Hz
Power consumption 17W
The maximum Dimensions Width 475x height 150x depth of 404mm
Weight 15.8kg
Attachment: Remote commander RC-20
Remote control system Infrared pulse system
Power source DC 3V
Battery AA -- type (SUM-3/R6) and two pieces
The maximum Dimensions Width 55x height 194x depth of 18mm
Weight 100g (Battery included)
