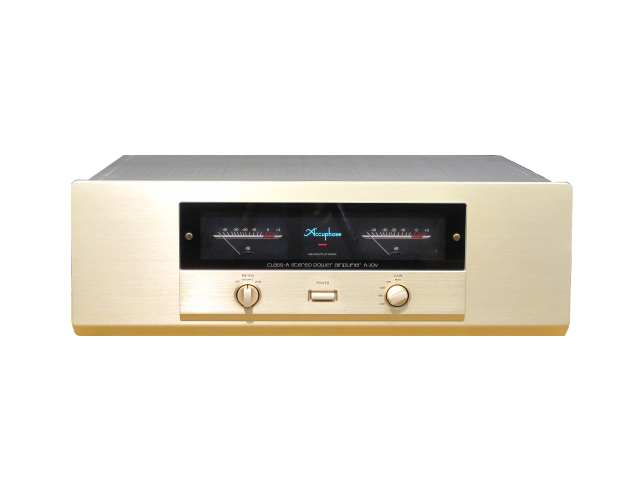

Accuphase金嗓子 金嗓子Accuphase A-20V

上市参考售价:¥16,500

推出年代:2000.3

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Rated continuation average output
(For 20Hz - 20kHz) At the time of stereo specification (both channel simultaneous operation)
2ohm:80 W/ch
4ohm:40 W/ch
8ohm:20 W/ch
At the time of monophonic specification (bridge connection)
4ohm: 160W
8ohm: 80W
THD At the time of stereo specification (both channel simultaneous operation)
2ohms : 0.05%
4-16ohms : 0.02%
At the time of monophonic specification (bridge connection)
4-16ohms : 0.02%
IM distortion 0.003%
Frequency response At the time of a rated continuation average output: 20Hz - 20,000Hz, and +0 -0.2 dB
At the time of 1W output: 0.5Hz - 160,000Hz, and +0 -3.0 dB
Gain (profit) 28.0dB (at the time of GAIN switch MAX o'clock, a stereo / monophonic specification)
Load impedance At the time of stereo specification: 2-16ohms
At the time of monophonic specification: 4-16ohms
Dumping factor At the time of stereo specification: 120
At the time of monophonic specification: 60
Input sensitivity (8-ohm load) At the time of stereo specification
0.50V (at the time of a rated continuation average output)
0.11V (at the time of 1W output)
At the time of monophonic specification
1.00V (at the time of a rated continuation average output)
0.11V (at the time of 1W output)
Input impedance Balance: 40kohm
Unbalance: 20kohm
S/N (A compensation) 110dB (at the time of input short-circuit and a rated continuation average output)
Power meter level A logarithm compression type, with a display putting-out-lights function
NORMAL : -40dB-+3dB
-20dB : -60dB--17dB
Power source AC100V, 50Hz/60Hz
Power consumption At the time of no inputting: 160W
Electrical Appliance and Material Control Law: 250W
At the time of an 8ohm Output power: 180W
Dimensions Width 475x height 170x depth of 426mm
Weight 22.6kg
