Accuphase金嗓子 金嗓子Accuphase M-100

上市参考售价:¥25,000

推出年代:1981.7

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
one set

器材规格

Form Monophonic power amplifier
Continuation average output
(20Hz - 20kHz, 0.01% of distortion) 1000W (2ohms)
800W (4ohms)
500W (8ohms)
250W (16ohms)
THD (20Hz - 20kHz) 0.01% (between 2ohm-16ohm, 0.25W - a continuation average output)
IM distortion (EIA) 0.003%
Frequency response 20Hz-20kHz±0dB (at the time of a continuation average output level control MAX)
0.5Hz-400kHz+0 -3 dB (at the time of 1W output level control MAX)
0.5Hz-140kHz+0 -3 dB (at EIA, the time of 1W output level-control 6dB)
Gain 28dB
Load impedance 2ohm-16ohm
Dumping factor (EIA) 300 (50Hz, 8ohms)
Input sensitivity/impedance 2.6V/20kohm (at the time of a continuation average output)
0.12V/20kohm (at the time of EIA and 1W output)
Input level adjustment Step type Attenuator
Attenuation: They are [ 0 - the 1dB step between -20dB, and ] 25 contacts of -23dB, -30dB, and -infinity henceforth.
Error: Less than ±0.1dB
S/N (A compensation) 130dB (at the time of a continuation average output input short-circuit)
100dB (at EIA, the time of 1W output input 1kohm)
A low filter 10Hz/17 Hz/30 Hz/50 Hz, -12 dB/oct
Power output meter A logarithm compression peak directions type, -60dB-+3dB, and an output Direct-reading scale

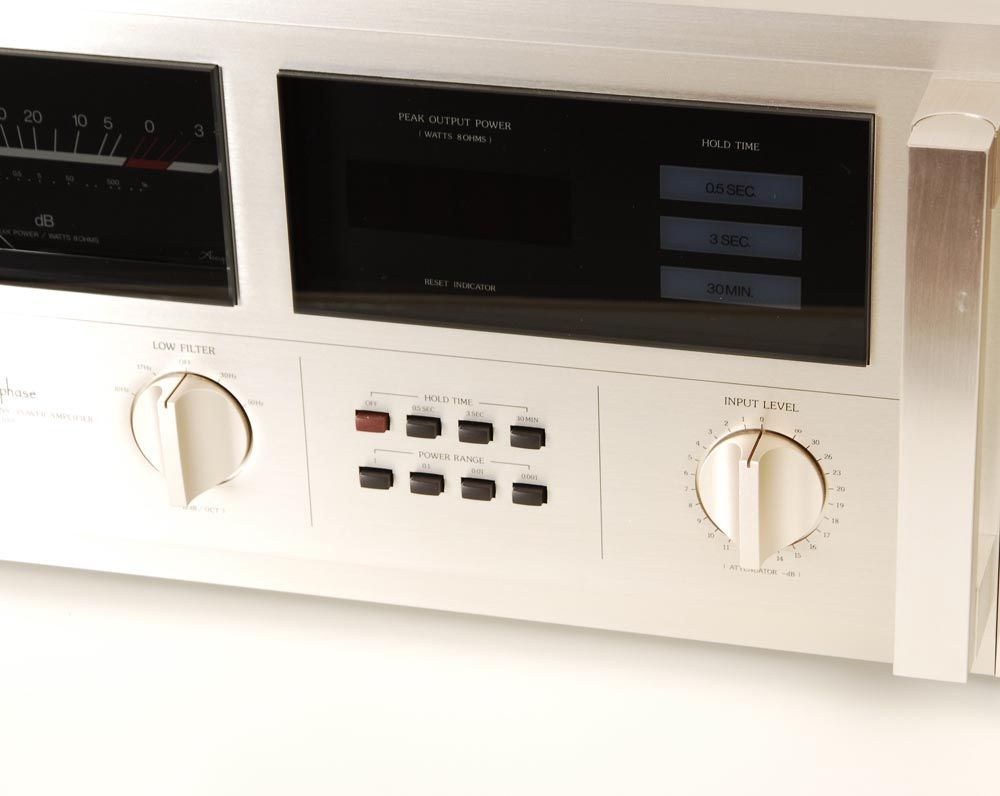

Digital power display
Form : It is a watt display about the peaking capacity at the time of 8-ohm load.
Display digit number : Triple figures
Display range : It is a Direct reading about 0.001W-999W by range change.
Range 0.001: 0.001-0.999W
0.01: 0.01-9.99W
0.1: 0.1-99.9W
1:1-999W
Hold time : 0.5 second, 3 seconds, 30 minutes
Frequency response : 20Hz-20kHz+0 -0.2 dB
Pulse reply error : It is +0 about 100Hz one wave. -0.4 dB
The semiconductor used Transistor: 57 pieces
FET: Five pieces
IC: 21 pieces
Diode: 65 pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption 175W (at the time of no inputting)
490W (Electrical Appliance and Material Control Law)
780W (at the time of 8-ohm load 500W output)
Dimensions the width 480x height 232(piece -- it includeds) x depth of 476mm
Weight 41.5kg
Attachment Timing cable (1.5m)
Option Side wood A-14 (one set with attachment lug, 16,000yen)
Fan for heat dissipation O-81 (one set, 8,000yen)
Timing cable TC-11 (10m, 3,000yen)
