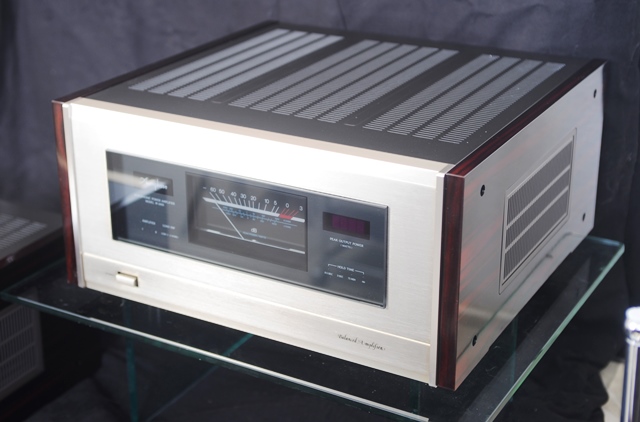

Accuphase金嗓子 金嗓子Accuphase M-1000

上市参考售价:¥32,500

推出年代:1987.11

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
one set

器材规格

Form Monophonic power amplifier
Continuation average output
(For 20Hz - 20kHz)
Normal Load Imp.Operation (0.01% of distortion) 4ohm: 1800W
8ohm: 1000W
16ohm: 500W
Low Load Imp.Operation (0.05% of distortion) 1ohm: 1600W
2ohm: 1100W
4ohm: 550W
THD 1-4ohm load: 0.05%
4-16ohm load: 0.01%
IM distortion 0.003%
Frequency response 20Hz - 20kHz, ±0dB (at the time of a continuation average output level control MAX)
0.5Hz - 150kHz, and +0 -3.0 dB (at the time of 1W output level control MAX)
0.5Hz - 80kHz, and +0 -3.0 dB (at the time of 1W output level-control 6dB)
Gain 28.0dB
Load impedance Normal Load Imp.Opaeration: 4-16ohms
Low Load Imp.Operation: 1-4ohms
Dumping factor 200(EIA 50Hz)
Input sensitivity
Normal Load Imp. Operation 3.56V (at the time of 8-ohm load and a continuation average output)
0.12V (at the time of 8-ohm load and 1W output)
Low Load Imp. Operation: 1.87V (at the time of 2-ohm load and a continuation average output)
0.06V (at the time of 2-ohm load and 1W output)
Input impedance Unbalance: 20kohm
Balance: 40kohm
S/N (A-compensation) 125dB (at the time of input short-circuit and a continuation average output)
95dB (at the time of input 1kohm and 1W output)
Analog type power output meter Logarithm compression peak display type
- 60dB - +3dB, and an output Direct-reading scale
Digital type power output meter
Form The true value display type of electric power
Display range It is a Direct reading about 0.001W-9,990W by range change.
Effective digit number 3.5 figures
Range 2:0. 001-1.999W
20:0. 01-19.99W
200:0. 1-199.9W
2000: 1-1,999W
10000: 10-9,990W
Accuracy Less than 2kW : 3% ±5 count
2kW or more : 3% ±50 count
Hold time 0.5 sticks, 3 seconds, 75 minutes, infinity
The semiconductor used 99Tr, 13FET, 31IC, 142Di
Power source 100V, 117V, 220V, 240V, 50Hz/60Hz
Power consumption At the time of no inputting: 120W+120W
Electrical Appliance and Material Control Law: 600W+600W
At the time of an 8ohm load Output power: 800W+800W
Dimensions the width 481x height 239(piece -- it includeds) x depth of 489mm
Weight 47.2kg
Option Fan for heat dissipation O-83 (10,000yen)
