one set
器材规格

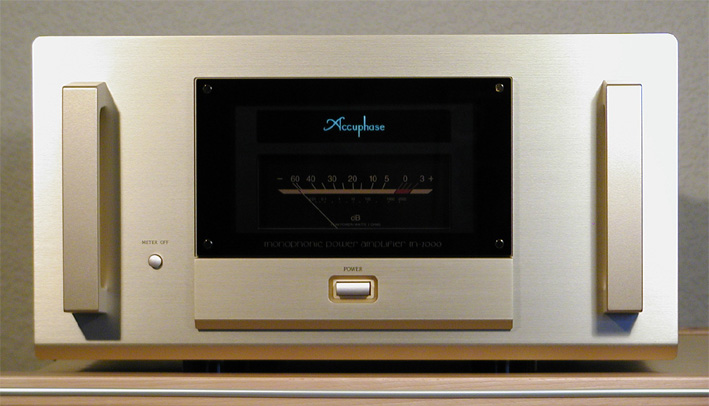

Form Monophonic power amplifier
Rated continuation average output
(For 20Hz - 20kHz) 1ohm load: 2000W (it restricts to a music signal)
2ohm load: 1000W
4ohm load: 500W
8ohm load: 250W
THD 1ohm load: 0.1%
2ohm load: 0.05%
4ohms - 16ohm load: 0.03%
IM distortion 0.003%
Frequency response At the time of a rated continuation average output: 20Hz-20000Hz+0 -0.2 dB
At the time of 1W output: 0.5Hz-160000Hz+0 -3.0 dB
Gain (profit) 28.0dB
Load impedance At the time of a continuation output: 2ohms - 16ohms
At the time of a music signal: 1ohm - 16ohms
Dumping factor 400
Input sensitivity (8-ohm load) At the time of a rated continuation average output: 1.78V
At the time of 1W output: 0.11V
Input impedance Balance: 40kohm
Unbalance: 20kohm
S/N (A-compensation) 120dB (at the time of input short-circuit and a rated continuation average output)
Power output meter Logarithm compression type
- 60dB - +3dB, and an output Direct-reading scale
Power source AC100V, 50Hz/60Hz
Power consumption At the time of no inputting: 180W
Electrical Appliance and Material Control Law: 950W
At the time of an 8ohm Output power: 585W
Dimensions Width 475x height 252x depth of 545mm
Weight 50kg
Rated continuation average output
(For 20Hz - 20kHz) 1ohm load: 2000W (it restricts to a music signal)
2ohm load: 1000W
4ohm load: 500W
8ohm load: 250W
THD 1ohm load: 0.1%
2ohm load: 0.05%
4ohms - 16ohm load: 0.03%
IM distortion 0.003%
Frequency response At the time of a rated continuation average output: 20Hz-20000Hz+0 -0.2 dB
At the time of 1W output: 0.5Hz-160000Hz+0 -3.0 dB
Gain (profit) 28.0dB
Load impedance At the time of a continuation output: 2ohms - 16ohms
At the time of a music signal: 1ohm - 16ohms
Dumping factor 400
Input sensitivity (8-ohm load) At the time of a rated continuation average output: 1.78V
At the time of 1W output: 0.11V
Input impedance Balance: 40kohm
Unbalance: 20kohm
S/N (A-compensation) 120dB (at the time of input short-circuit and a rated continuation average output)
Power output meter Logarithm compression type
- 60dB - +3dB, and an output Direct-reading scale
Power source AC100V, 50Hz/60Hz
Power consumption At the time of no inputting: 180W
Electrical Appliance and Material Control Law: 950W
At the time of an 8ohm Output power: 585W
Dimensions Width 475x height 252x depth of 545mm
Weight 50kg
