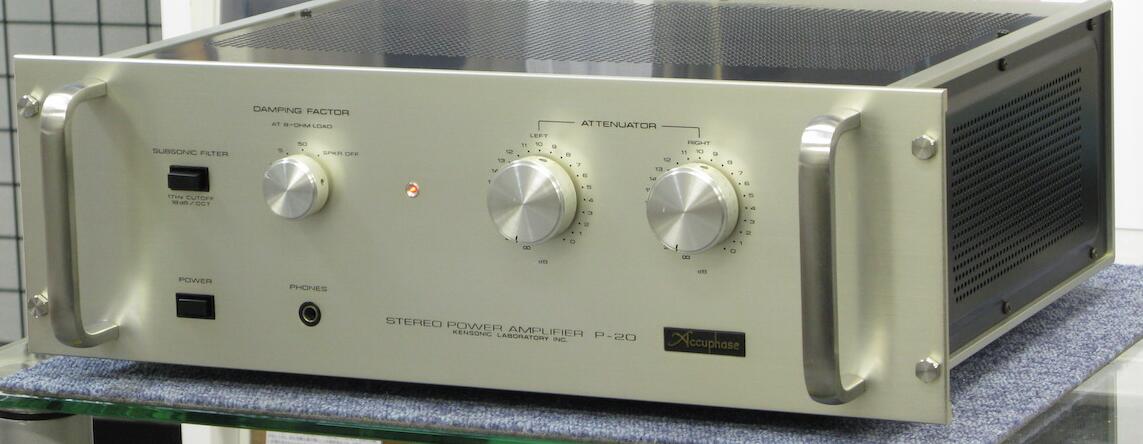

Accuphase金嗓子 金嗓子Accuphase P-20

上市参考售价:¥9,500

推出年代:1976.5

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Output power
(Both channel operation, 20Hz - 20kHz, 0.1% of distortion) 100 W/ch (4ohms)
70 W/ch (8ohms)
35 W/ch (16ohms)
THD (20Hz - 20kHz) At the time of an Output power: 0.1%
- At the time of a 3dB output : 0.05%
At the time of a 50mW output: 0.1%
IM distortion (arbitrary frequency of 20Hz - 20kHz) At the time of an Output power: 0.1%
Frequency response (at the time of an Output power) 20Hz-20000Hz+0 -0.2 dB
Dumping factor (8-ohm load, 40Hz) 50, 5, 1 (change type)
A rated input / input impedance 1.0V/100kohm
S/N ratio (at the time of an Output power) 100dB
Stereo headphone Conformity impedance: 4-32ohms
Subsonic Filter 17Hz or less, 18 dB/oct
The semiconductor used Transistor: 60 pieces
IC: One piece
Diode: 44 pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption At the time of no inputting: 45W
At the time of the 8ohm load maximum except take-off: 290W
At the time of the 4ohm load maximum except take-off: 530W
Dimensions Width 482x height 150x depth of 353mm
Weight 23.5kg
Remarks 19-inch standard rack attachment is possible.
Rack-mounted pitch: 100mm (4")
Rack bore (horizontal): More than 430mm (16 15/16")
