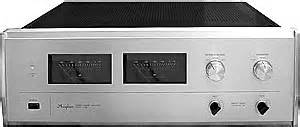

Accuphase金嗓子 金嗓子Accuphase P-260

上市参考售价:¥10,000

推出年代:1979.4

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Continuation average output
(both [ new IHF and ] channel operation)
20Hz - 20kHz, 0.01% or less of a distortion Normal Operation
4ohm:180 W/ch
8ohm:130 W/ch
16ohm:65 W/ch
Class-A Operation
4ohm:45 W/ch
8ohm:30 W/ch
16ohm:15 W/ch
THD (both channel operation)
Output 0.25W - an Output power, 20Hz - 20kHz 4ohms : 0.01% or less
8ohms : 0.005% or less
16ohms : 0.005% or less
IM distortion (new IHF) 0.003% or less
Frequency response At the time of an Output power: 20Hz - 20000hz+0 -0.2 dB
New IHF: It is +0 0.4Hz - 120000Hz. -3.0 dB
Dumping factor (new IHF) 80 (20Hz - 20000Hz)
120(50Hz)
Input sensitivity/input impedance Output power: 1.3V/50kohm
New IHF and 1W output:0.12V/50kohm
S/N (A-compensation) 120dB (a rated input, input short-circuit)
100dB (at the time of new IHF and 1W output)
Power output meter Logarithm compression type-40dB-+6dB and an output Direct reading
With a peak hold change
The semiconductor used 33Tr, 16FET, 4IC, 40Di, two optocouplers
Power source 100V, 117V, 220V, 240V / 50 or 60Hz
Power consumption
Normal Operation: 63W (at the time of no inputting)
490W (at the time of an 8-ohm load Output power)
Class-A Operation: 195W (at the time of no inputting)
210W (at the time of an 8-ohm load Output power)
Dimensions the width 445x height 160(piece -- it includeds) x depth of 390mm
Weight 19.7kg
Option Wood cabinet A-8 (\15,000)
