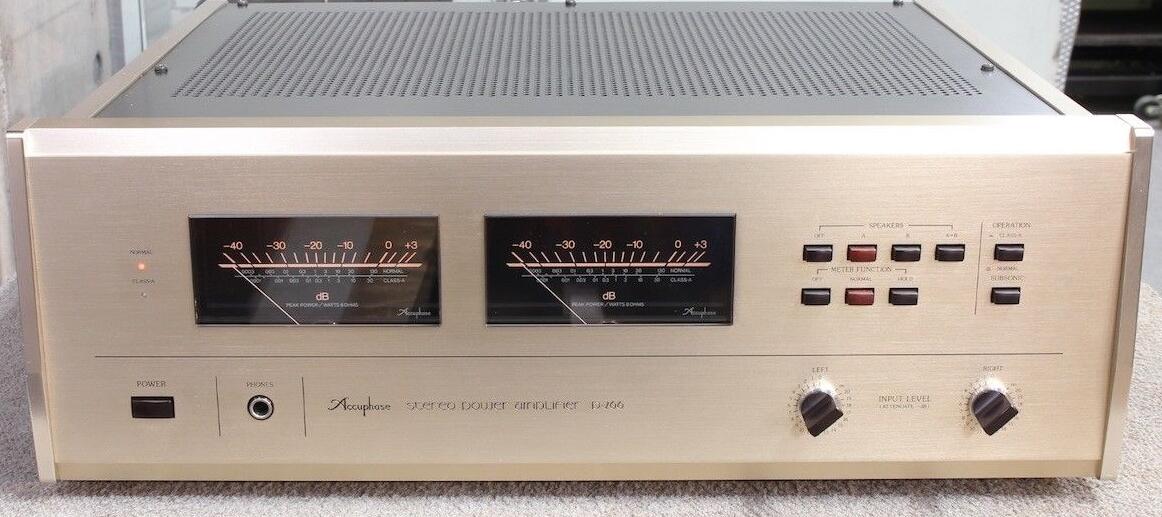

Accuphase金嗓子 金嗓子Accuphase P-266

上市参考售价:¥11,000

推出年代:1983.3

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Continuation average output
(20Hz - 20kHz, 0.01% of distortion)
At the time of stereo specification
Normal: 200 W/ch (4ohms)
130 W/ch (8ohms)
65 W/ch (16ohms)
Class-A: 55 W/ch (4ohms)
30 W/ch (8ohms)
18 W/ch (16ohms)
At the time of monophonic specification (bridge connection)
Normal: 400W (8ohms)
180W (16ohms)
Class-A: 110W (8ohms)
55W (16ohms)
THD
(20Hz - 20kHz, 0.25W
 - continuation average output)
At the time of stereo specification : 0.01% (4-ohm load)
0.005% (8ohms - 16-ohm load)
At the time of monophonic specification (bridge connection) : 0.01% (8-ohm load)
0.005% (16-ohm load)
IM distortion (IHF) 0.003%
Frequency response 20Hz-20kHz+0 -0.2 dB (at the time of a continuation average output level control MAX)
0.5Hz-300kHz+0 -3 dB (at the time of 1W output level control MAX)
0.5Hz-150kHz+0 -3 dB (at the time of 1W output level-control 6dB)
Gain At the time of stereo specification: 27.8dB
At the time of monophonic specification: 33.7dB
Load impedance At the time of stereo specification: 2ohms - 16ohms
At the time of monophonic specification: 4ohms - 16ohms
Dumping factor At the time of stereo specification: 120
At the time of monophonic specification: 60
Input sensitivity/impedance
(at the time of 8-ohm load)
At the time of stereo specification : 1.3V/20kohm (at the time of a continuation average output)
0.12V/20kohm (at the time of 1W output IHF)
At the time of monophonic specification : 1.1V/20kohm (at the time of a continuation average output)
0.06V/20kohm (at the time of 1W output IHF)
S/N (A compensation)
At the time of stereo specification : 120dB (at the time of input short-circuit and a continuation average output)
100dB (at input 1kohm, the time of 1W output IHF)
At the time of monophonic specification : 110dB (at the time of input short-circuit and a continuation average output)
90dB (at input 1kohm, the time of 1W output IHF)
Stereo headphone Low Output-load-impedance type
Subsonic Filter 17Hz, -12 dB/oct
Power output meter A logarithm compression peak directions type, -40dB-+3dB, and an output Direct-reading scale
With a peak hold change
The semiconductor used Transistor: 34 pieces
FET: 18 pieces
IC: Seven pieces
Diode: 68 pieces
Optocoupler: Two pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption
Normal: 120W (at the time of no inputting)
500W (at the time of an 8-ohm load Output power)
Class-A: 150W (at the time of no inputting)
190W (at the time of an 8-ohm load Output power)
Dimensions the width 445x height 160(piece -- it includeds) x depth of 373mm
Wood cabinet: Width 466x height 190x depth of 385mm
Weight 20kg
Option Wood cabinet A-8 (16,000yen)
