器材规格

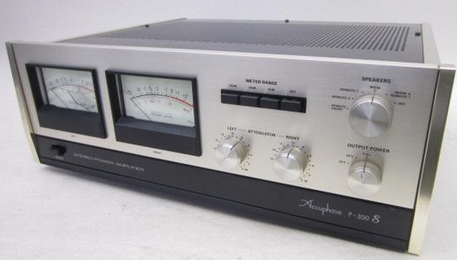

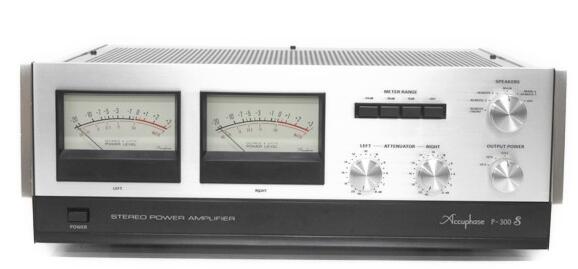

Form Stereo power amplifier
Output power
(Bothchannel drive, 20Hz - 20kHz, 0.03% or less of distortion) 200 W/ch (4ohms)
150 W/ch (8ohms)
75 W/ch (16ohms)
THD (20Hz - 20kHz) 0.03% or less (at the time of an Output power)
0.01% or less (at the time of a -3dB output)
0.05% or less (at the time of a 50mW output)
IM distortion 0.01% or less (at the time of an Output power)
Frequency response 20Hz-20kHz+0 -0.2dB (at the time of an Output power)
1Hz-250kHz+0 -3dB (at the time of 1W output)
Dumping factor (8-ohm load, 40Hz) 60
A rated input / input impedance 1.4V/50kohm
S/N ratio (input short-circuit, IHF-A curve) 115dB or more (at the time of an Output power)
Stereo headphone Low Output-load-impedance type
Subsonic Filter 17Hz, 18 dB/oct
Power limiter Full power, 1/2, 1/4, a switch change
The semiconductor used Transistor: 97 pieces
FET: Two pieces
IC: One piece
Diode: 92 pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption At the time of no inputting: 100W
At the time of an 8ohm load Output power: 510W
Dimensions the width 445x height 160(piece -- it includeds) x depth of 355mm
Weight 25kg
Option Wood case A-2 (15,000yen)
Output power
(Bothchannel drive, 20Hz - 20kHz, 0.03% or less of distortion) 200 W/ch (4ohms)
150 W/ch (8ohms)
75 W/ch (16ohms)
THD (20Hz - 20kHz) 0.03% or less (at the time of an Output power)
0.01% or less (at the time of a -3dB output)
0.05% or less (at the time of a 50mW output)
IM distortion 0.01% or less (at the time of an Output power)
Frequency response 20Hz-20kHz+0 -0.2dB (at the time of an Output power)
1Hz-250kHz+0 -3dB (at the time of 1W output)
Dumping factor (8-ohm load, 40Hz) 60
A rated input / input impedance 1.4V/50kohm
S/N ratio (input short-circuit, IHF-A curve) 115dB or more (at the time of an Output power)
Stereo headphone Low Output-load-impedance type
Subsonic Filter 17Hz, 18 dB/oct
Power limiter Full power, 1/2, 1/4, a switch change
The semiconductor used Transistor: 97 pieces
FET: Two pieces
IC: One piece
Diode: 92 pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption At the time of no inputting: 100W
At the time of an 8ohm load Output power: 510W
Dimensions the width 445x height 160(piece -- it includeds) x depth of 355mm
Weight 25kg
Option Wood case A-2 (15,000yen)
