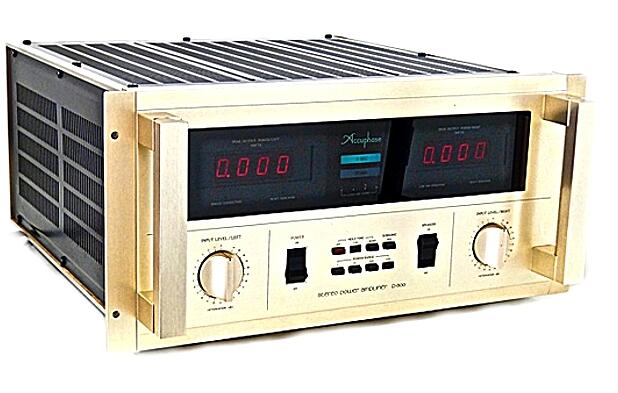

Accuphase金嗓子 金嗓子Accuphase P-600

上市参考售价:¥32,500

推出年代:1983.4

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Continuation average output
(20Hz - 20kHz, 0.02% of distortion)
At the time of stereo specification
Normal Load Imp. Operation: 700 W/ch (2ohms)
500 W/ch (4ohms)
300 W/ch (8ohms)
150 W/ch (16ohms)
Low Load Imp. Operation: 450 W/ch (1ohm)
300 W/ch (2ohms)
At the time of monophonic specification
Normal Load Imp. Operation: 1400W (4ohms)
1000W (8ohms)
600W (16ohms)
Low Load Imp. Operation: 900W (2ohms)
600W (4ohms)
THD
At the time of stereo specification : 0.02% (1ohm-2ohm)
0.01% (4ohm-16ohm)
At the time of monophonic specification : 0.02% (2ohm-4ohm)
0.01% (8ohm-16ohm)
IM distortion (EIA) 0.01%
Frequency response 20Hz-20kHz+0 -0.2 dB (at the time of a continuation average output level control MAX)
0.5Hz-250kHz+0 -3 dB (at the time of 1W output level control MAX)
0.5Hz-150kHz+0 -3 dB (at the time of 1W output level-control 6dB)
Gain 27.8dB (at the time of stereo specification)
33.8dB (at the time of monophonic specification)
Load impedance At the time of stereo specification: 1ohm - 16ohms
At the time of monophonic specification: 2ohms - 16ohms
Dumping factor
(EIA 50Hz) At the time of stereo specification: 300
At the time of monophonic specification: 150
Input sensitivity
At the time of stereo specification : 2.0V (8ohm, 300W, Normal Load Imp.Operation)
1.0V (2ohm, 300W, Low Load Imp.Operation)
At the time of monophonic specification : 1.83V (8ohm, 1000W, Normal Load Imp.Operation)
0.91V (2ohm, 900W, Low Load Imp.Operation)
Input impedance 20kohm disequilibrium
600-ohm balance
S/N (A compensation)
At the time of
stereo specification : 125dB
(input short-circuit, 8 ohms, a continuation average output, Normal Load Imp.Operation)
100dB (at input 1kohm, the time of 1W output EIA)
At the time of
monophonic specification : 118dB
(input short-circuit, 8 ohms, a continuation average output, Normal Load Imp.Operation)
90dB
(at input 1kohm, the time of 1W output EIA)
Subsonic Filter 10Hz, -12 dB/oct
Power output meter
Form : A triple figure digital display, a peak directions Direct-reading type
Display range : It is 0.001W-999W by range change.
Load impedance change : 2ohm, 4ohm, 8ohm, 16ohm
Hold time : 3 seconds, 30 minutes
Frequency response : 20Hz-20kHz+0 -0.2 dB
Pulse reply error : + 0 -0.4 dB (by 100Hz one wave)
The semiconductor used Transistor: 90 pieces
FET: Eight pieces
IC: 36 pieces
Diode: 104 pieces
LED: Eight pieces
Power supply voltage AC100V/117V/220V/240V, 50Hz/60Hz
Power consumption
(Normal Load Imp. Operation) 165W (at the time of no inputting)
1100W (Electrical Appliance and Material Control Law)
1100W (at the time of an 8-ohm load Output power)
Dimensions the width 480x height 232(piece -- it includeds) x depth of 476mm
Weight 38.5kg
Option Persimmon wood panel A-14 (attachment lug one set, \16,000)
Fan for heat dissipation O-81 (one set, \8,000)
