器材规格

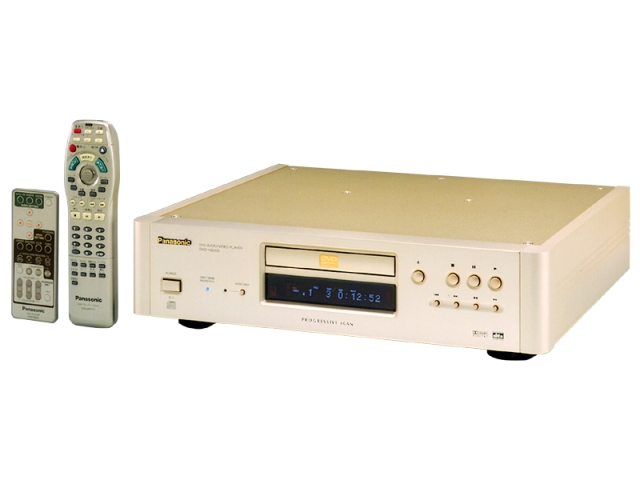

Form A DVD-Audio/video player
A renewable media DVD-Audio (SL/DL, 8/12cm)
DVD-Video (SL/DL, 8/12cm)
VCD (8/12cm), compact disk (8/12cm)
Frequency characteristic (JEITA) DVD-Audio(linear voice): 2Hz-88kHz (192kHz sampling)
DVD (linear voice): 2Hz - 44kHz (96kHz sampling)
compact disk: 2Hz - 20kHz
S/N ratio (JEITA) CD audio:115dB
Dynamic range (JEITA) DVD (linear voice): 108dB
CD audio:100dB
THD (JEITA) CD audio:0.0017%
Analog voice output 2ch: Two lines
5. 1ch : one line
Digitized voice output An optical digital output: Optical connector
Coaxial digital output: A pin jack, two lines
Image output Output voltage: 1 Vp-p (75ohms)
Output-terminal: Pin jack
The number of terminations: One line
S image output Y Output voltage: 1 Vp-p (75ohms)
C Output voltage: 0.286 Vp-p (75ohms)
Output-terminal: S terminal
The number of terminations: Two lines
Component image output (525p) Y Output voltage: 1 Vp-p (75ohms)
CB Output voltage: 0.7 Vp-p (75ohms)
CR Output voltage: 0.7 Vp-p (75ohms)
Output-terminal: Pin jack (Y: green, CB:blue, CR:red)
The number of terminations: One line
Progressive image output Y Output voltage: 1 Vp-p (75ohms)
PB Output voltage: 0.7 Vp-p (75ohms)
PR Output voltage: 0.7 Vp-p (75ohms)
Output-terminal: BNC termination
The number of terminations: One line
Power source AC100V, 50Hz/60Hz
Power consumption 22W
About 1.5W (at the time of a standby)
Dimensions Width 430x height 114x depth of 391mm (projection thing not included)
Weight About 17.9kg
A renewable media DVD-Audio (SL/DL, 8/12cm)
DVD-Video (SL/DL, 8/12cm)
VCD (8/12cm), compact disk (8/12cm)
Frequency characteristic (JEITA) DVD-Audio(linear voice): 2Hz-88kHz (192kHz sampling)
DVD (linear voice): 2Hz - 44kHz (96kHz sampling)
compact disk: 2Hz - 20kHz
S/N ratio (JEITA) CD audio:115dB
Dynamic range (JEITA) DVD (linear voice): 108dB
CD audio:100dB
THD (JEITA) CD audio:0.0017%
Analog voice output 2ch: Two lines
5. 1ch : one line
Digitized voice output An optical digital output: Optical connector
Coaxial digital output: A pin jack, two lines
Image output Output voltage: 1 Vp-p (75ohms)
Output-terminal: Pin jack
The number of terminations: One line
S image output Y Output voltage: 1 Vp-p (75ohms)
C Output voltage: 0.286 Vp-p (75ohms)
Output-terminal: S terminal
The number of terminations: Two lines
Component image output (525p) Y Output voltage: 1 Vp-p (75ohms)
CB Output voltage: 0.7 Vp-p (75ohms)
CR Output voltage: 0.7 Vp-p (75ohms)
Output-terminal: Pin jack (Y: green, CB:blue, CR:red)
The number of terminations: One line
Progressive image output Y Output voltage: 1 Vp-p (75ohms)
PB Output voltage: 0.7 Vp-p (75ohms)
PR Output voltage: 0.7 Vp-p (75ohms)
Output-terminal: BNC termination
The number of terminations: One line
Power source AC100V, 50Hz/60Hz
Power consumption 22W
About 1.5W (at the time of a standby)
Dimensions Width 430x height 114x depth of 391mm (projection thing not included)
Weight About 17.9kg
