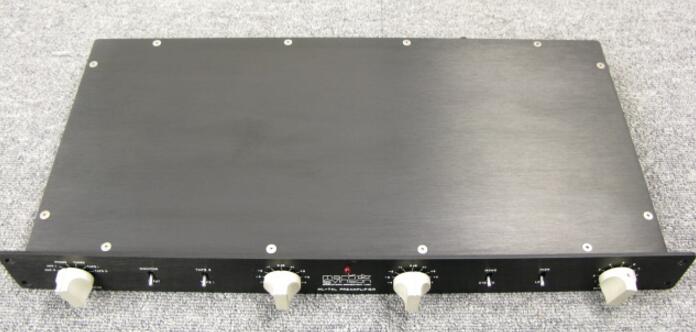

Mark Levinson马克 列文森 马克 列文森MARK LEVINSON ML-7AL

上市参考售价:¥82,500

推出年代:1986

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
L2 card equipment: (1986 release)   ¥82500
L3 / L3A card equipment: (1986 release)  ¥92500

器材规格

Form Preamplifier
Stream composition The phone amplifier 2, line amplifier 2

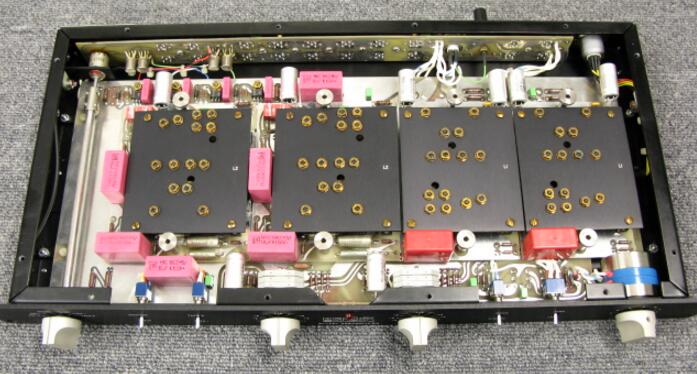

The stream composition by a total of four plug-ins
Gain Phone amplifier: 38dB, 44dB
At the time of L3 plug-in-card attachment: 66dB
At the time of an L3A plug-in-card attachment: 54dB
Line amplifier: 20dB
Input impedance Phone amplifier: 50kohm, 825ohm (switchover)
At the time of L3 plug-in-card attachment: 825ohm
At the time of an L3A plug-in-card attachment: 825ohm
Line amplifier: 10kohm
Output load impedance Phone amplifier (Tape out): 2kohm
Line amplifier (Main out): 47ohm
Maximum output Phone amplifier: 6.6V
Line amplifier: 8.0V
Power source AC100V, 50Hz/60Hz
Power consumption About 25W
Dimensions Main unit: Width 483x height 51x depth of 216mm

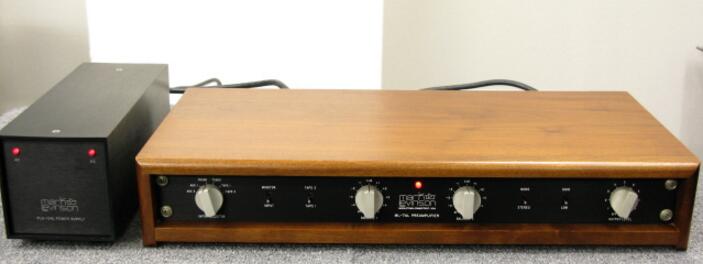

Power-source part: Width 101x height 101x depth of 269mm
Weight Main unit: 3.6kg
Power-source part: 2.4kg
Option L3 / L3A plug-in card (\600,000)
