器材规格

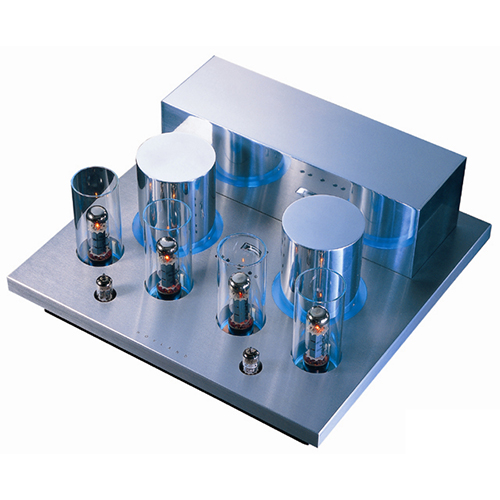

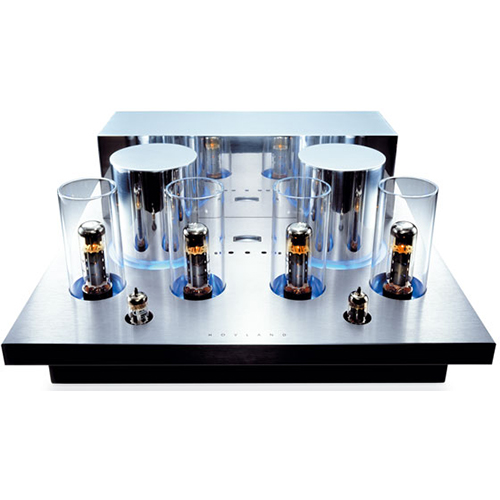

Tube complement: two 12AU7, four EL34.
Output power: 40Wpc into 8 ohms (16dBW) (80W, 19dBW, when bridged to mono).
Frequency response: 20Hz-20kHz, ±0.2dB.
Harmonic distortion: less than 0.1%, 20Hz and 1kHz, less than 0.2%, 10kHz, at 1Wpc; less than 1%, 1kHz, less than 1.5% 30Hz, less than 3% 10kHz, at 40Wpc.
S/N ratio: 82dB (A-weighted) ref. 1W out.
Input sensitivity: 910mV for 40W output.
Input impedance: 680k ohms.
Voltage gain: 26dB into 8 ohms.
Dimensions: 18.5" W by 8.125" H (with feet) by 17.5" D.
Weight: 82 lbs net, 97 lbs shipping.
Output power: 40Wpc into 8 ohms (16dBW) (80W, 19dBW, when bridged to mono).
Frequency response: 20Hz-20kHz, ±0.2dB.
Harmonic distortion: less than 0.1%, 20Hz and 1kHz, less than 0.2%, 10kHz, at 1Wpc; less than 1%, 1kHz, less than 1.5% 30Hz, less than 3% 10kHz, at 40Wpc.
S/N ratio: 82dB (A-weighted) ref. 1W out.
Input sensitivity: 910mV for 40W output.
Input impedance: 680k ohms.
Voltage gain: 26dB into 8 ohms.
Dimensions: 18.5" W by 8.125" H (with feet) by 17.5" D.
Weight: 82 lbs net, 97 lbs shipping.
