器材规格

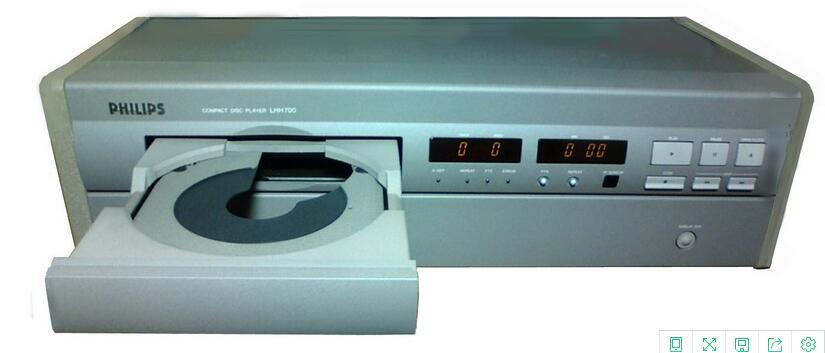

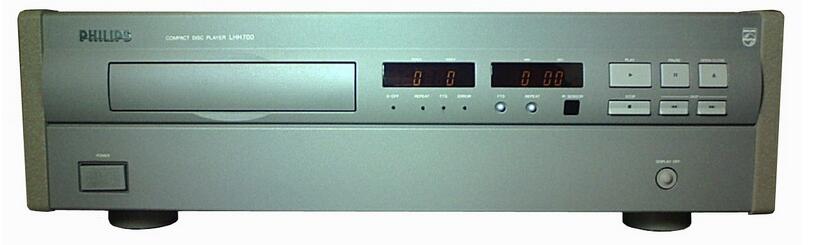

Form Compact disk player
Frequency characteristic 20Hz-20kHz±0.2dB (lineout termination)
20Hz-20kHz±0.2dB (balance output-terminal)
Dynamic range 96dB
SN ratio 108dB
Channel separation 100dB(1kHz)
THD (1kHz) 0.00135%
Wow and flutter Quartz-crystal precision
Analog output
Lineout termination Output voltage: 2 V=R MS
Output load impedance: 100ohms
Conformity load impedance: Ten or more kohms
Balance output-terminal Output voltage: 3 V=R MS
Output load impedance: 100ohms
Conformity load impedance
At the time of a balance using: 600ohms
At the time of an imbalanced using: 600ohms - 50kohm
Digital output Pin jack: 0.5 Vp-p/75ohm
Optical power (square-shaped light connector): -19dBm
Power source AC100V, 50Hz/60Hz
Power consumption About 18W
Dimensions Width 457x height 140x depth of 359mm
Weight About 16.7kg
Adjunct Remote control (rc700LHH)
The Battery of AA (R6-/SUM-3)
The high purity OFC stereo connecting cable for audios (RCA pin)
Digital signal connecting cable (RCA pin)
owners plate
Frequency characteristic 20Hz-20kHz±0.2dB (lineout termination)
20Hz-20kHz±0.2dB (balance output-terminal)
Dynamic range 96dB
SN ratio 108dB
Channel separation 100dB(1kHz)
THD (1kHz) 0.00135%
Wow and flutter Quartz-crystal precision
Analog output
Lineout termination Output voltage: 2 V=R MS
Output load impedance: 100ohms
Conformity load impedance: Ten or more kohms
Balance output-terminal Output voltage: 3 V=R MS
Output load impedance: 100ohms
Conformity load impedance
At the time of a balance using: 600ohms
At the time of an imbalanced using: 600ohms - 50kohm
Digital output Pin jack: 0.5 Vp-p/75ohm
Optical power (square-shaped light connector): -19dBm
Power source AC100V, 50Hz/60Hz
Power consumption About 18W
Dimensions Width 457x height 140x depth of 359mm
Weight About 16.7kg
Adjunct Remote control (rc700LHH)
The Battery of AA (R6-/SUM-3)
The high purity OFC stereo connecting cable for audios (RCA pin)
Digital signal connecting cable (RCA pin)
owners plate
