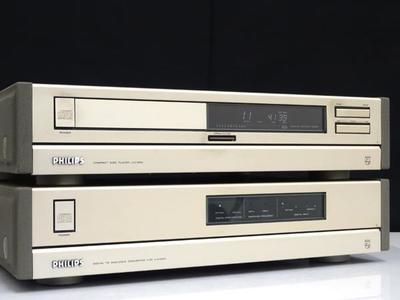

philips飞利浦 飞利浦PHILIPS LHH1000(LHH1001+LHH1002+LHH1003)

上市参考售价:¥30,000

推出年代:1988

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
1988年——¥30000
1989年——¥27150

器材规格

Form Compact-disk-player system

Laser AlGaAs semiconductor
Wavelength 780nm
Digital output A coaxial 1, 2:0.5 Vp-p
Optical: -15dBm--23dBm
Power source AC100V, 50Hz/60Hz
Power consumption 13W
The maximum Dimensions Width 455x height 103x depth of 345mm
Weight 14kg


< digital-analog-converter unit LHH1002>
Digital analog converter The 4 time oversampling digital filter of a 16-bit
L/R independency 2DAC
Filter The 3rd Bessel filter
Digital input termination A coaxial 1, 2:0.5 Vp-p/75ohms
optical -- 1 and 2:-15dBm--23dBm
Digital tape recorder termination
Input Coaxial: 0.5 Vp-p/75ohms
Optical: -15dBm--23dBm
Output Coaxial: 0.5 Vp-p/75ohms
Optical: -15dBm--23dBm
Analog output Balance output: 3 Vrms/100ohms
Unbalance: 2 Vrms/100ohms
Sampling frequency 441. kHz, 48kHz (automatic switch)
Frequency characteristic (44.1kHz o'clock) Unbalance: 2Hz-20kHz±0.1dB
Balance: 20Hz-20kHz±0.3dB
SN ratio (EIAJ) 106dB or more
Dynamic range (EIAJ) 97dB or more
Channel separation (EIAJ) 100dB or more
THD 0.0015%(1kHz)
Power source AC100V, 50Hz/60Hz
Power consumption 15W
The maximum Dimensions Width 455x height 103x depth of 345mm
Weight 14kg

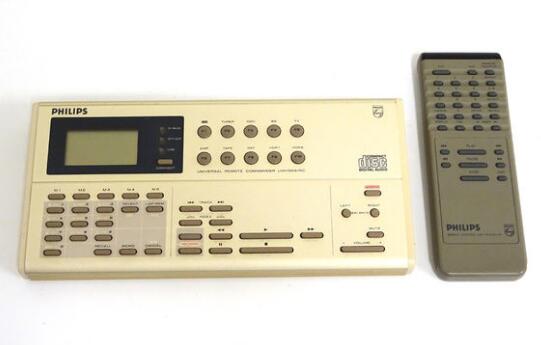

< remote Control unit LHH1003>
Form Infrared scheme Ran type
Power source Four AA Batteries using
The maximum Dimensions Width 260x height 31x depth of 126mm
Weight 730g
