器材规格

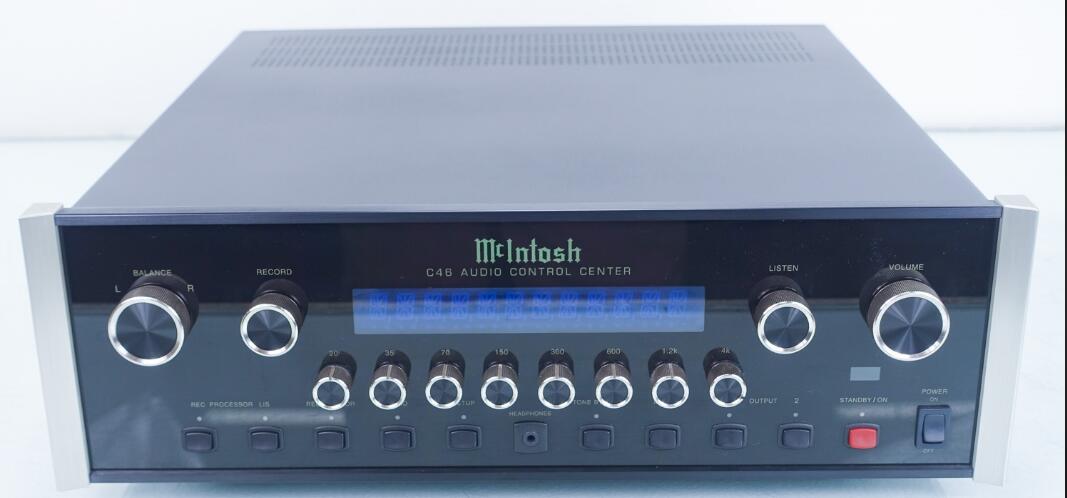

Form Audio control center
Output load impedance Balance: 480ohm
Unbalance: 240ohm
Input sensitivity/impedance Line (balance): 900mV / 47kohm
Line (unbalance): 450mV / 22kohm
Phone man-month: 4.5mV / 47kohm
Gain A line -> pre out: 15dB
Line -> tapes output: 0dB
Phone man-month-> tapes output: 40dB
THD 0.002% or less

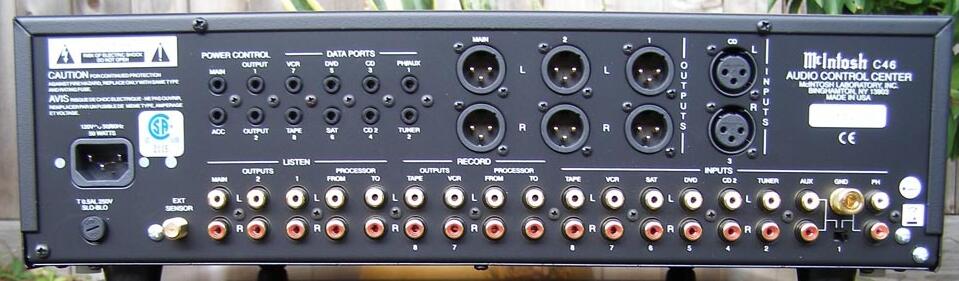

Input terminal Line RCA: Eight lines (one phone man month/Aux switchover)
Line XLR: One line
Sound-recording output-terminal RCA: Two lines
Processor input/output terminal RCA: One line
Pre-out termination RCA: Three lines
XLR: Three lines
8 band equalizer 20, 35, 70, 150, 300, 600, 1.2k, 4kHz
±12dB
Power consumption 50W
The maximum Dimensions Width 445x height 152x depth of 467mm
Weight 11.8kg
Adjunct Remote control
Output load impedance Balance: 480ohm
Unbalance: 240ohm
Input sensitivity/impedance Line (balance): 900mV / 47kohm
Line (unbalance): 450mV / 22kohm
Phone man-month: 4.5mV / 47kohm
Gain A line -> pre out: 15dB
Line -> tapes output: 0dB
Phone man-month-> tapes output: 40dB
THD 0.002% or less
Input terminal Line RCA: Eight lines (one phone man month/Aux switchover)
Line XLR: One line
Sound-recording output-terminal RCA: Two lines
Processor input/output terminal RCA: One line
Pre-out termination RCA: Three lines
XLR: Three lines
8 band equalizer 20, 35, 70, 150, 300, 600, 1.2k, 4kHz
±12dB
Power consumption 50W
The maximum Dimensions Width 445x height 152x depth of 467mm
Weight 11.8kg
Adjunct Remote control
