器材规格
Form Tube preamplifier
Output-power voltage Balance: 5V (RMS)
Unbalance: 2.5V (RMS)
Maximum output voltage Balance: 16V (RMS)
Unbalance: 8V (RMS)
Output load impedance Balance: 500ohm
Unbalance: 250ohm
Input sensitivity/impedance Line (balance): 450mV / 44kohm
Line (unbalance): 450mV / 22kohm
Phone man-month: 4.5mV / 47kohm
Gain A line -> pre out: 15dB
Line -> tapes output: 0dB
Phone man month -> pre out: 55dB
THD 0.08% or less

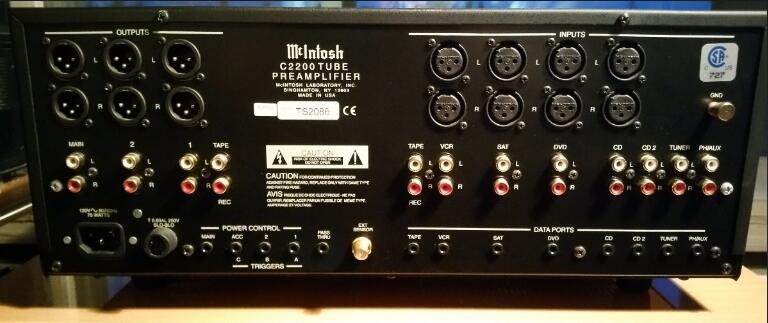

Input terminal Line RCA: Eight lines (one phone man month/Aux switchover)
Line XLR: Four lines
Sound-recording output-terminal RCA: One line
Pre-out termination RCA: Three lines
XLR: Three lines
Valves employed 12AX7x4
12AT7x4
Power consumption 75W
The maximum Dimensions Width 445x height 194x depth of 410mm
Weight 13.0kg
Adjunct Remote control
Output-power voltage Balance: 5V (RMS)
Unbalance: 2.5V (RMS)
Maximum output voltage Balance: 16V (RMS)
Unbalance: 8V (RMS)
Output load impedance Balance: 500ohm
Unbalance: 250ohm
Input sensitivity/impedance Line (balance): 450mV / 44kohm
Line (unbalance): 450mV / 22kohm
Phone man-month: 4.5mV / 47kohm
Gain A line -> pre out: 15dB
Line -> tapes output: 0dB
Phone man month -> pre out: 55dB
THD 0.08% or less
Input terminal Line RCA: Eight lines (one phone man month/Aux switchover)
Line XLR: Four lines
Sound-recording output-terminal RCA: One line
Pre-out termination RCA: Three lines
XLR: Three lines
Valves employed 12AX7x4
12AT7x4
Power consumption 75W
The maximum Dimensions Width 445x height 194x depth of 410mm
Weight 13.0kg
Adjunct Remote control
