mcintosh麦景图 麦景图McIntosh MA2275

上市参考售价:¥47,250

推出年代:2007

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

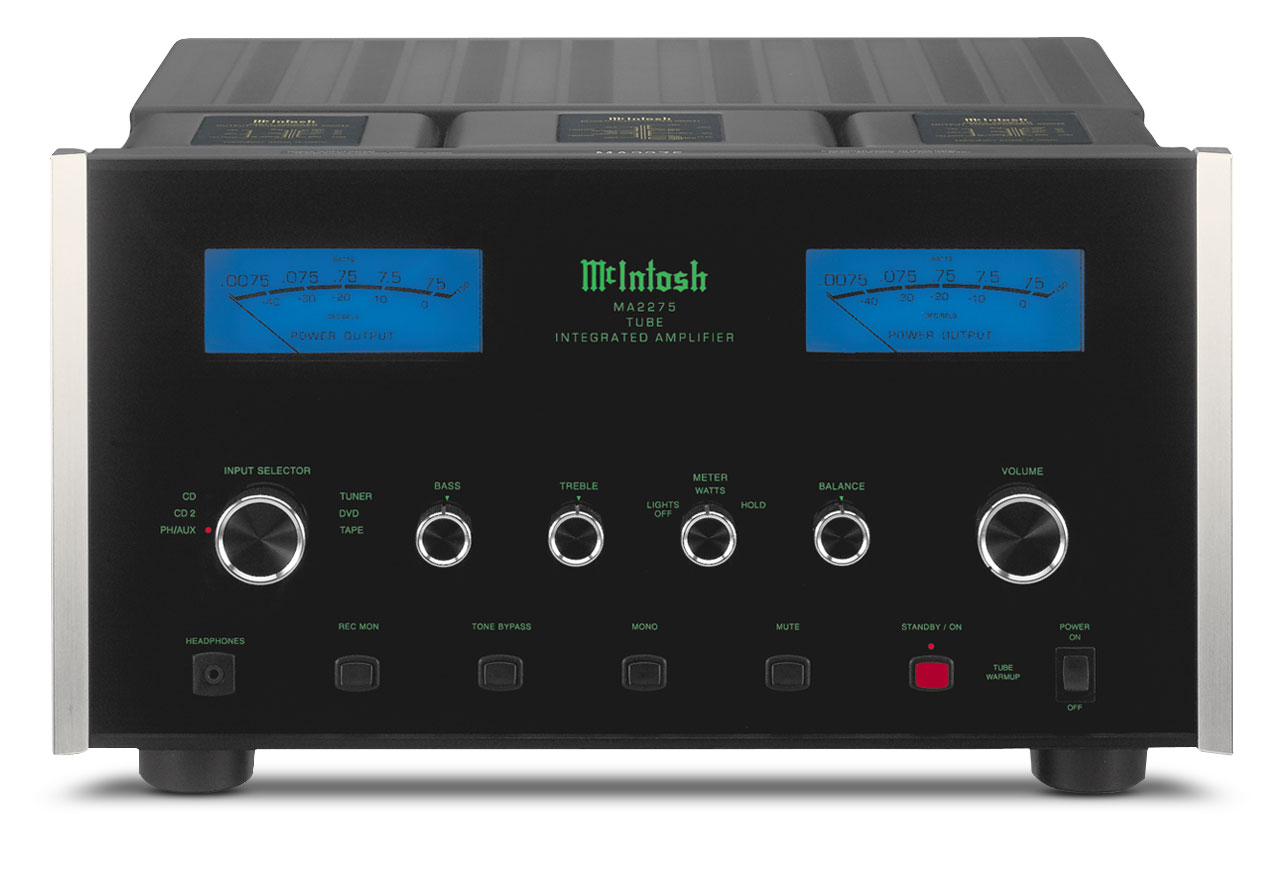

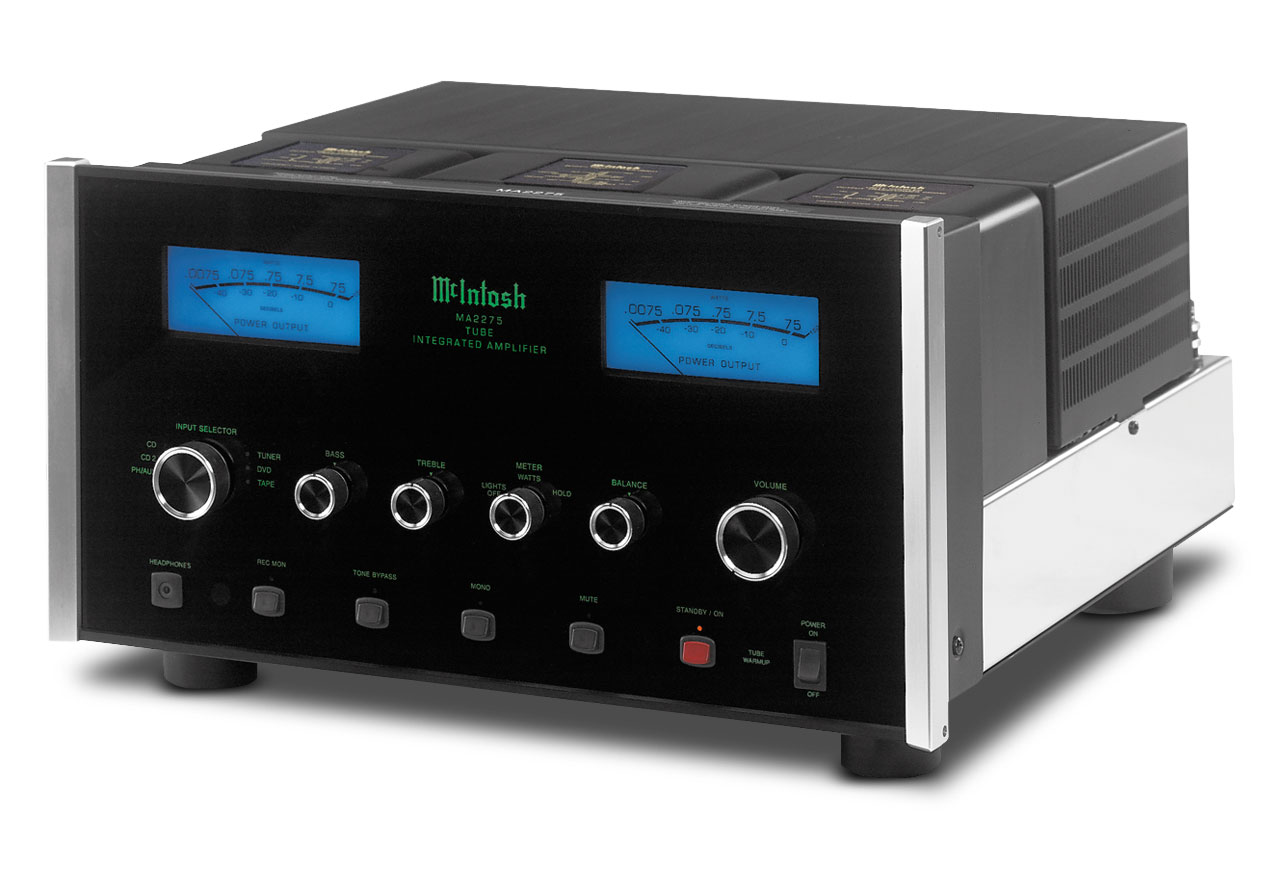

      MA2275合并式放大器包含经典麦景图立体双声道每声道75瓦功率,并首次采用的低噪真空管前置功放,安装于抛光不锈钢底盘上。经典玻璃面板上装着两个麦景图蓝光功率表,具有旋转功能和无线手持遥控选项,提供了两倍的单独组件功能。六个输入源和一个循环带提供了灵活的声源联系组合。前置功放输出可支持附加的功放或信号处理器

器材规格

Form Tube integrated amplifier

Output power stereo: 75W+75W (2ohm, 4ohm, 8ohm)
Input sensitivity/impedance Line: 2.5V/22kohm
Phone: 2.5mV / 47kohm

Input sensitivity/impedance Line: 450mV / 22kohm
Phone man-month: 4.4mV / 47kohm
Gain A line -> pre out: 15dB
Line -> tapes output: 0dB

THD 0.5% or less
Speaker output One line x3 (the object for 2 ohm, the object for 4 ohm, for 8 ohm)

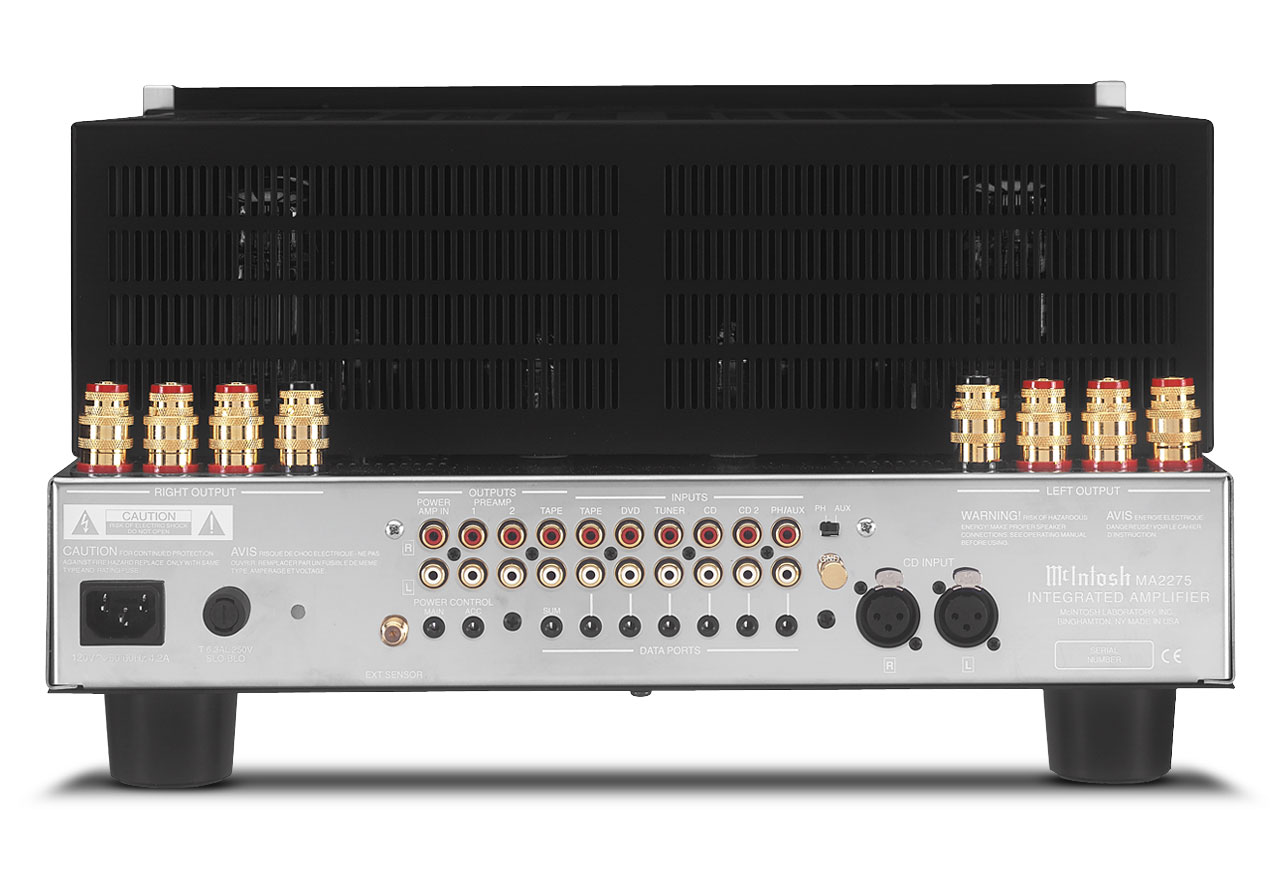

Input terminal Line RCA: Six lines (one phone man month/Aux switchover)
Line XLR: One line
Power input RCA: One line
Sound-recording output-terminal RCA: One line
Pre-out termination RCA: One line
Valves employed Preamplifier part: 12AX7Ax2
Phone: 12AT7Ax2
Power amplifier part: KT88x4
12AT7x2
Power consumption 250W
The maximum Dimensions Width 445x height 257x depth of 470mm
Weight 35.0kg
Adjunct Remote control
