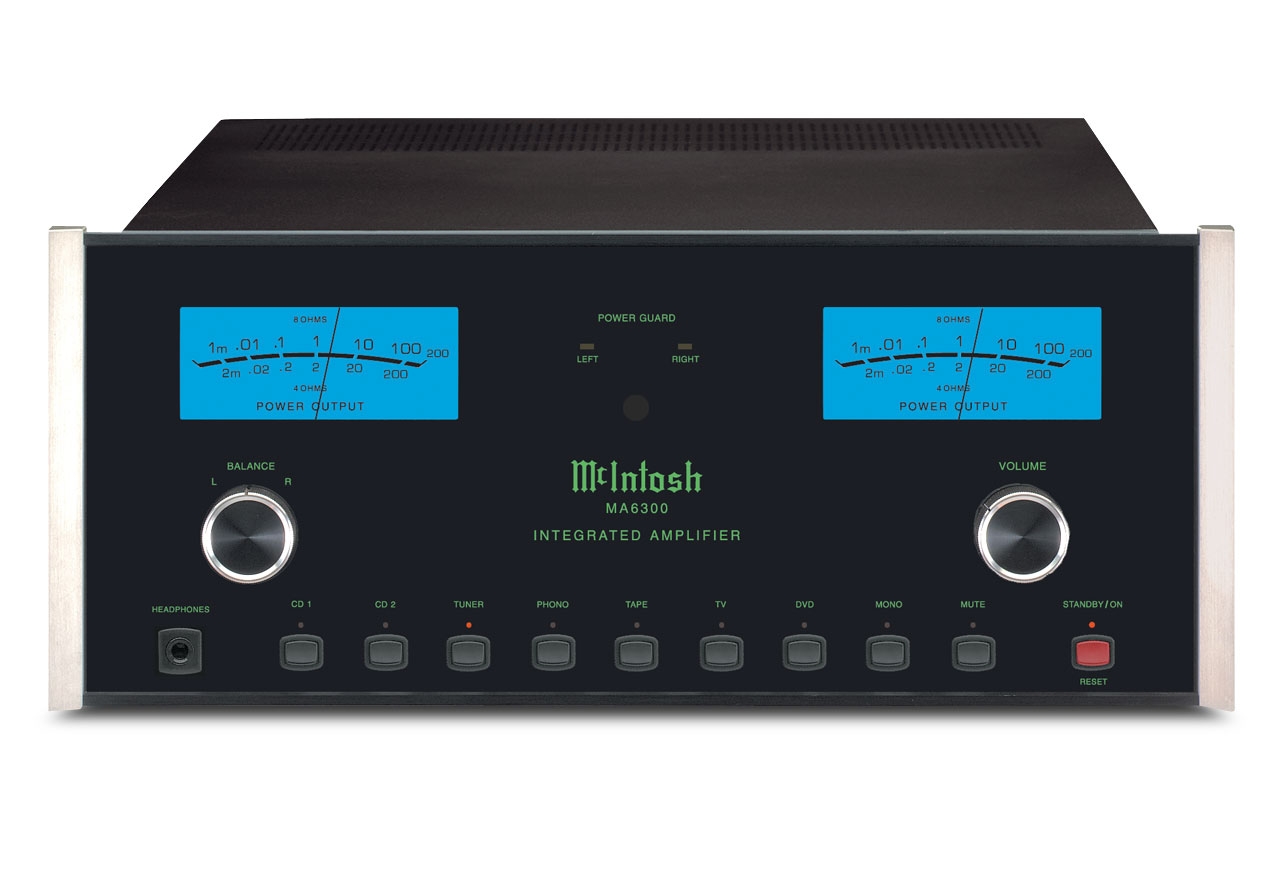

麦景图MA6300合并式放大器面板采用全新光纤照明系统,其最新功率输出显示表可实时核算并以最高准确度显示8Ω和4Ω时的功率数据,准确掌握扬声器的最高承受功率。每声道160W(4Ω)输出功率,7组输入讯号选择皆采用数码逻辑电磁控制开关,从而达到无电弧的讯号切换,杜绝氧化的情况,确保无噪声和基本为“零”耗损。具备全平衡讯号端子输入,即使是较长的讯号线,讯号也不容易感染噪声。配备麦景图专利Power Guard®微电脑旁路监察多重保护线路、Sentry Monitor®时刻电流监察保护线路及Thermal Protection温度监察电路保护装置的多重保护,确保器材使用安全。采用自家研发的R-Core电源变压器技术,保障了电源供应的洁净的保障,使音乐表达更为真实。
—— 【HIFI说】
器材规格
Form Integrated amplifier
Output power 160W+160W (4ohm)
100W+100W (8ohm)
Input sensitivity/impedance 1V/10kohm
Input sensitivity/impedance Line (balance): 500mV / 20kohm
Line (unbalance): 250mV / 20kohm
Phone man-month: 2.5mV / 47kohm
Gain A line -> pre out: 12dB
Line -> tapes output: 0dB
A phone -> pre out: 52dB
THD 0.005% or less
Speaker output One line

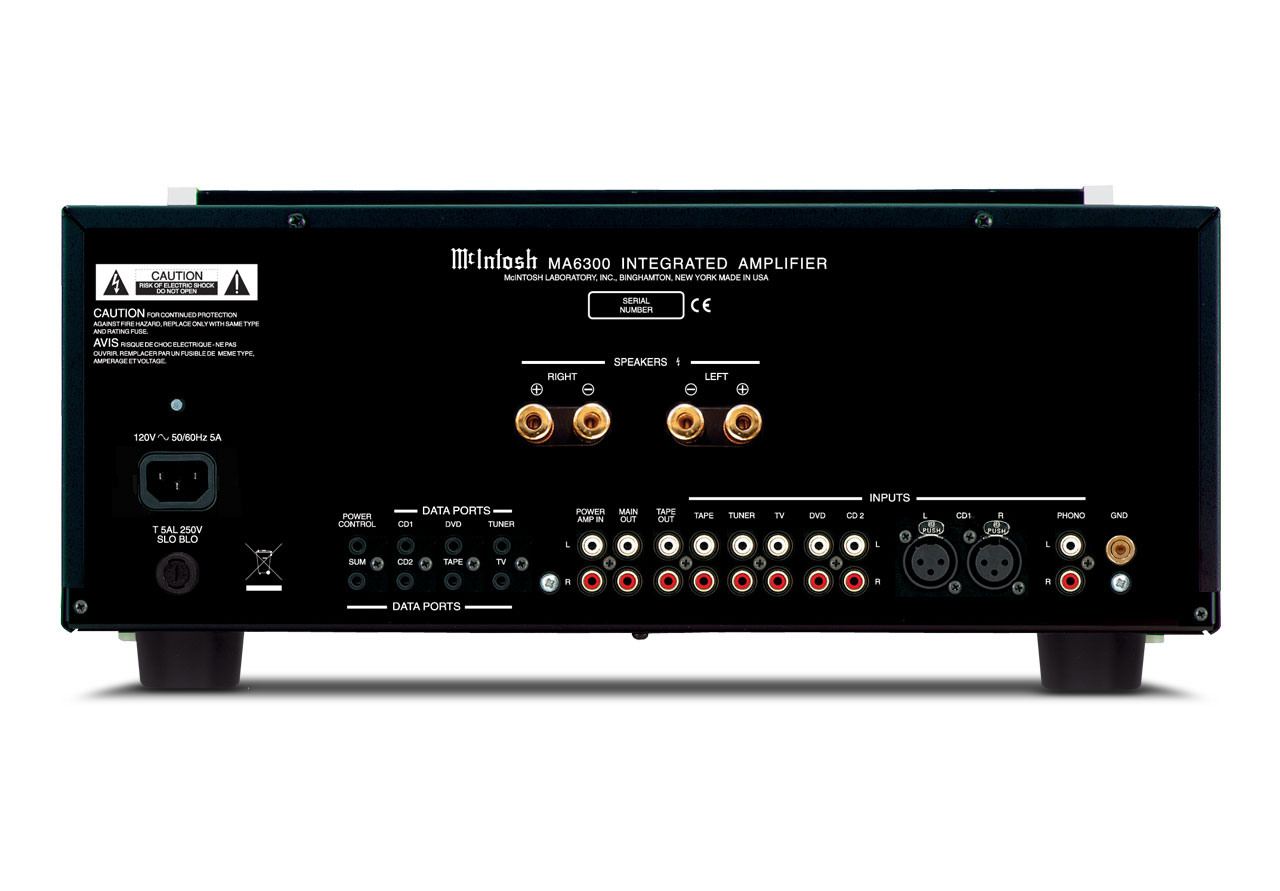

Input terminal Line RCA: Five lines
Line XLR: One line
Phone man month: One line
Power input RCA: One line
Sound-recording output-terminal RCA: One line
Pre-out termination RCA: One line
Power consumption 3.6A
The maximum Dimensions Width 445x height 194x depth of 475mm
Weight 16.8kg
Adjunct Remote control
Output power 160W+160W (4ohm)
100W+100W (8ohm)
Input sensitivity/impedance 1V/10kohm
Input sensitivity/impedance Line (balance): 500mV / 20kohm
Line (unbalance): 250mV / 20kohm
Phone man-month: 2.5mV / 47kohm
Gain A line -> pre out: 12dB
Line -> tapes output: 0dB
A phone -> pre out: 52dB
THD 0.005% or less
Speaker output One line
Input terminal Line RCA: Five lines
Line XLR: One line
Phone man month: One line
Power input RCA: One line
Sound-recording output-terminal RCA: One line
Pre-out termination RCA: One line
Power consumption 3.6A
The maximum Dimensions Width 445x height 194x depth of 475mm
Weight 16.8kg
Adjunct Remote control
