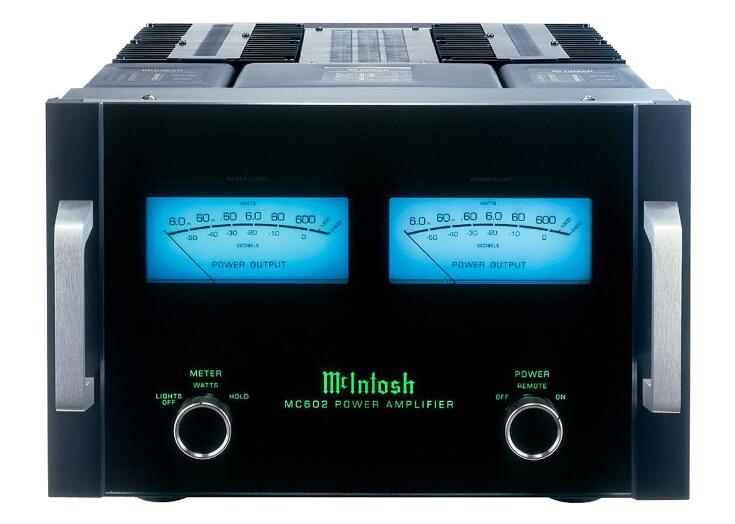

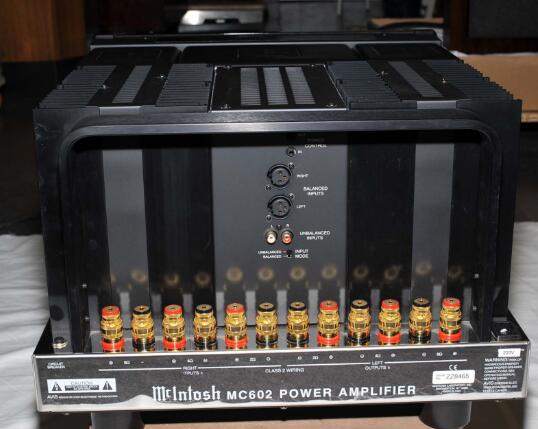

mcintosh麦景图 麦景图 McIntosh MC602

上市参考售价:¥60,000

推出年代:2000

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%

器材规格

Form Stereo power amplifier
Output power 600W+600W (2ohm, 4ohm, an 8-ohm load intensity, 20Hz - 20kHz, sine wave)
Output voltage (RMS) 34.6V(2V)
49V (4ohm)
69.3V (8ohm)
Output-power bandwidth 20Hz - 20kHz
Output load impedance stereo: 2 ohms, 4ohm, 8ohm
Input sensitivity Unbalance: 2.45V
Balance: 4.9V
Input impedance 10kohm
Frequency characteristic 20Hz-20kHz+0 -0.25 dB
10Hz-100kHz+0 -3.0 dB
SN ratio (A load) Unbalance: 93dB (below an Output power 120dB)
Balance: 97dB (below an Output power 124dB)
Height harmonic distortion 0.005% or less (250mW - Output power)
Cross modulation distortion (SMPTE) A maximum of 0.005% (instant peek power output <= Output-power x2)
Wideband dumping factor 100 (8-ohm output)
Power guarding Prevention from clipping
THD <=2% (less than over-drive 14dB, 1kHz)
Power source AC100V, 50Hz/60 Hz, 12A (Underwriters Laboratories/CSA specification)
Dimensions Width 445x height 310x depth of 537mm
Weight 69.8kg
