器材规格

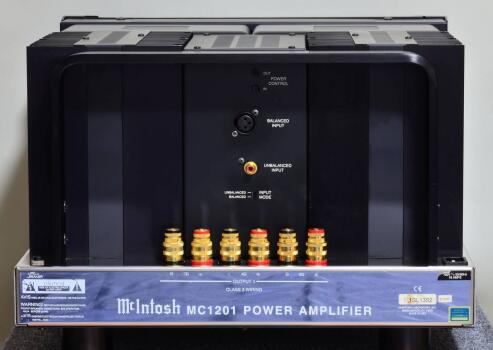

Form Monophonic power amplifier
Output power (sinusoidal consecutive output) 1,200W (2ohm, 4ohm, 8ohm)
Load impedance 2ohm, 4ohm, 8ohm
Output frequency band 20Hz - 20kHz
THD (20Hz - 20kHz) 0.005% or less (at the time of 250mW - 1,200W output)
Cross modulation distortion (20Hz - 20kHz) 0.005% or less (less than twice of an Output power)
Frequency band (at the time of 1W output) 20Hz-20kHz+0 -0.25 dB
10Hz-100kHz+0 -3.0 dB
SN ratio (IHF-A) 115dB (at the time of an Output power)
IHF dynamic head room 2.1dB
Dumping factor 100 or more
Input impedance 10kohm
Input sensitivity 2.5V
Power guarding It is less than THD2% to over-drive 14dB at 1kHz.
Power source AC100V, 50Hz/60 Hz, 1,500W (Underwriters Laboratories/CSA)
The maximum Dimensions Width 460x height 280x depth of 543mm
Weight 66.7kg
It is 1 set in two sets
Output power (sinusoidal consecutive output) 1,200W (2ohm, 4ohm, 8ohm)
Load impedance 2ohm, 4ohm, 8ohm
Output frequency band 20Hz - 20kHz
THD (20Hz - 20kHz) 0.005% or less (at the time of 250mW - 1,200W output)
Cross modulation distortion (20Hz - 20kHz) 0.005% or less (less than twice of an Output power)
Frequency band (at the time of 1W output) 20Hz-20kHz+0 -0.25 dB
10Hz-100kHz+0 -3.0 dB
SN ratio (IHF-A) 115dB (at the time of an Output power)
IHF dynamic head room 2.1dB
Dumping factor 100 or more
Input impedance 10kohm
Input sensitivity 2.5V
Power guarding It is less than THD2% to over-drive 14dB at 1kHz.
Power source AC100V, 50Hz/60 Hz, 1,500W (Underwriters Laboratories/CSA)
The maximum Dimensions Width 460x height 280x depth of 543mm
Weight 66.7kg
It is 1 set in two sets
