器材规格
Scheme 3 ways, 18 speakers, a sealing scheme, and a floor type
Using unit For low-pass: 30.5cm cone type
For mid ranges: 20.3cm cone type
For high regions: 2.5cm dome shape x16
Play frequency characteristic 32Hz-22kHz±2dB
Impedance 4ohms
Output sound pressure level 88dB/2.83V/m
Recommendation amplifier output 200W-1,000W
Auto-return type overload protection built-in
Cross over frequency 250Hz, 1.5kHz
Dimensions Tweeter column: 2134mm (column base included) in height
Base enclosure: Width 450x height 714x depth of 400mm
Weight System total weight: 118kg

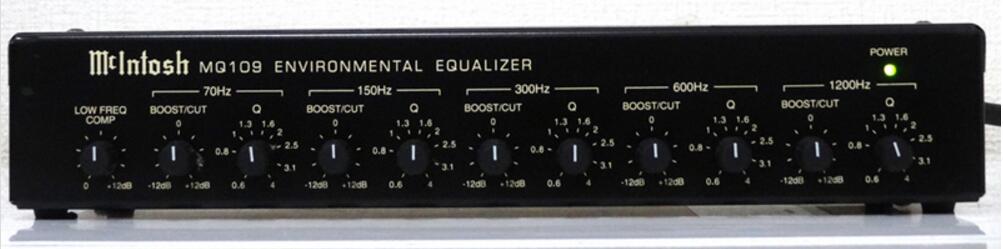

Adjunct: Active equalizer unit MQ109
Functionality Each five point (70Hz, 150Hz, 300Hz, 600Hz, 1.2kHz) frequency boost / cut: ±12dB
Q control
Low-end corrective network
It is 1 set in two sets
Using unit For low-pass: 30.5cm cone type
For mid ranges: 20.3cm cone type
For high regions: 2.5cm dome shape x16
Play frequency characteristic 32Hz-22kHz±2dB
Impedance 4ohms
Output sound pressure level 88dB/2.83V/m
Recommendation amplifier output 200W-1,000W
Auto-return type overload protection built-in
Cross over frequency 250Hz, 1.5kHz
Dimensions Tweeter column: 2134mm (column base included) in height
Base enclosure: Width 450x height 714x depth of 400mm
Weight System total weight: 118kg
Adjunct: Active equalizer unit MQ109
Functionality Each five point (70Hz, 150Hz, 300Hz, 600Hz, 1.2kHz) frequency boost / cut: ±12dB
Q control
Low-end corrective network
It is 1 set in two sets
