器材规格

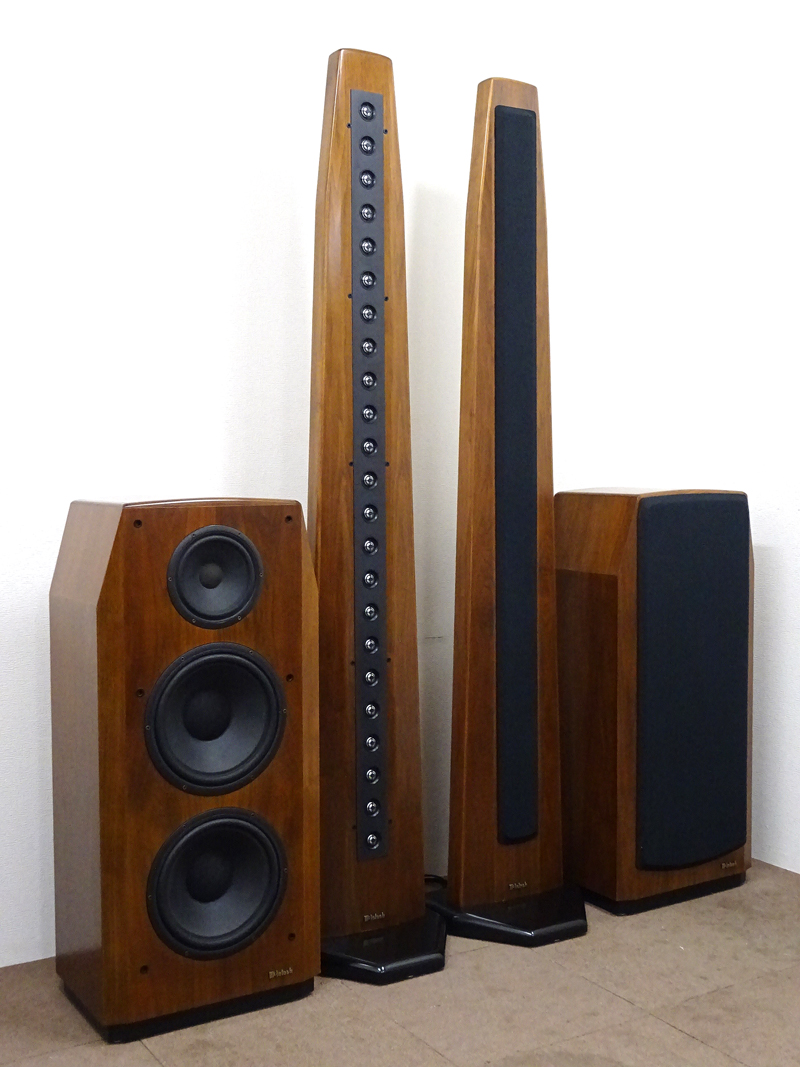

Scheme 3 ways, 26 speakers, a sealing scheme, and a floor type
Using unit For low-pass: 30.5cm cone type x2
For mid ranges: 20.3cm cone type
For high regions: 2.5cm dome shape x23
Play frequency characteristic 32Hz-22kHz±2dB
Impedance 4ohms
Output sound pressure level 87dB/2.83V/m
Recommendation amplifier output 200W-1,000W
Auto-return type overload protection built-in
Cross over frequency 250Hz, 1.5kHz

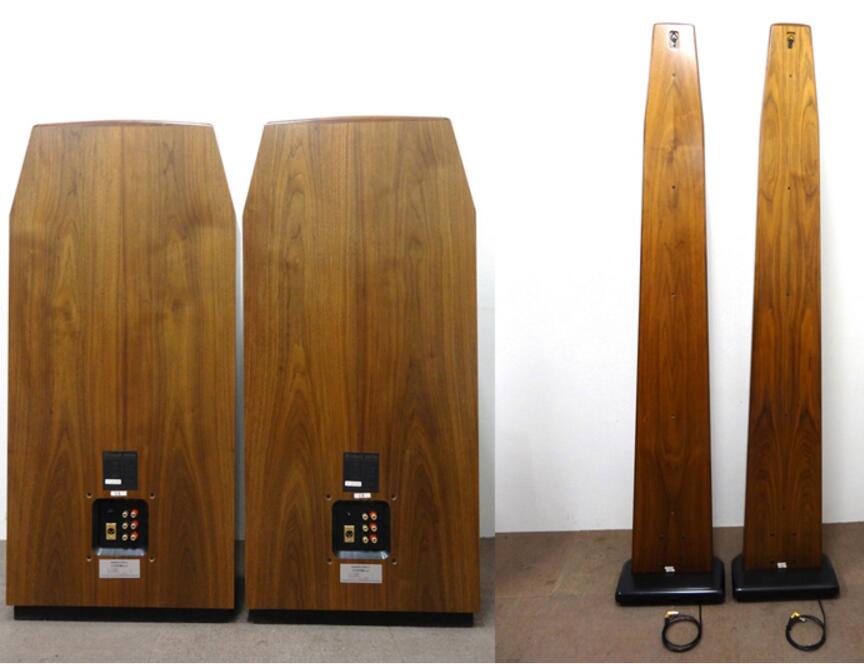

Dimensions Tweeter column: Width 432x height 2184x depth of 381mm (column base included)
Base enclosure: Width 508x height 1105x depth of 394mm
Weight Tweeter column: 31.5kg (column base included)
Base enclosure: 41.4kg
System total weight: 147.8kg

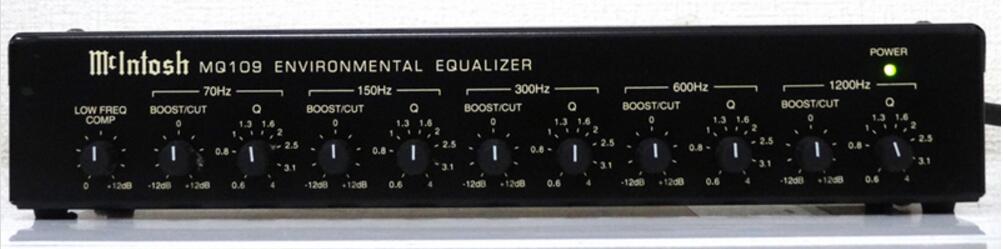

Adjunct: Active equalizer unit MQ109
Functionality Each five point (70Hz, 150Hz, 300Hz, 600Hz, 1.2kHz) frequency boost / cut: ±12dB
Q control
Low-end corrective network
Using unit For low-pass: 30.5cm cone type x2
For mid ranges: 20.3cm cone type
For high regions: 2.5cm dome shape x23
Play frequency characteristic 32Hz-22kHz±2dB
Impedance 4ohms
Output sound pressure level 87dB/2.83V/m
Recommendation amplifier output 200W-1,000W
Auto-return type overload protection built-in
Cross over frequency 250Hz, 1.5kHz
Dimensions Tweeter column: Width 432x height 2184x depth of 381mm (column base included)
Base enclosure: Width 508x height 1105x depth of 394mm
Weight Tweeter column: 31.5kg (column base included)
Base enclosure: 41.4kg
System total weight: 147.8kg
Adjunct: Active equalizer unit MQ109
Functionality Each five point (70Hz, 150Hz, 300Hz, 600Hz, 1.2kHz) frequency boost / cut: ±12dB
Q control
Low-end corrective network
