DA-10st:1994年——¥24000.00
DA-10UA:1994年——¥29000.00
DA-10UA:1994年——¥29000.00
器材规格
Form D/A converter
System 20-bit 8 time oversampling
Sampling frequency 32kHz, 44.1kHz, 48kHz

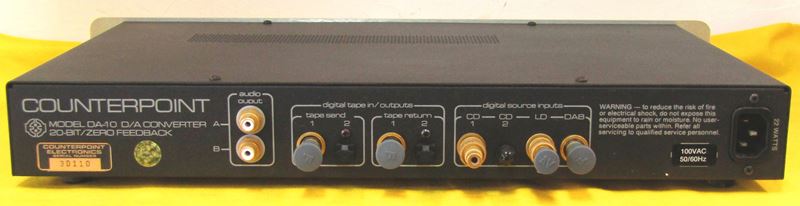

Digital sauce input Coaxial (BNC type): Three lines
Optical (ST link): One line
Digital tape input and output input: -- coaxial (BNC type): -- one line
Optical (TOSLINK): One line
output: -- coaxial (BNC type): -- one line
Optical (TOSLINK): One line
Jitter 50 or less (crystal Semiconductor make CS8412 use) pS
Digital filter Burr-Brown 8 time oversampling digital filter
Post filter 3rd order passive LC vessel filter
Analog output RCA type
Frequency response 20Hz-20kHz+0 -3dB (at the time of a 44.1kHz sampling)
THD 0.009% or less (20Hz - 20kHz)
Output voltage 2.1Vrms
Output load impedance 120ohms
The maximum Dimensions DA-10st: Width 483x height 65x depth of 313mm
DA-10UA: Width 483x height 65x depth of 315mm
Weight DA-10st:5.5kg
DA-10UA:6kg
Option Crystal Semiconductor DA10-CS18
An 18-bit delta / sigma DAC (58,000yen)
Analog Devices DA10-AD20
20 bit DAC (49,000yen)
Ultraanalog DA10-UA20
Dual 20 bit DAC (138,000yen)
System 20-bit 8 time oversampling
Sampling frequency 32kHz, 44.1kHz, 48kHz
Digital sauce input Coaxial (BNC type): Three lines
Optical (ST link): One line
Digital tape input and output input: -- coaxial (BNC type): -- one line
Optical (TOSLINK): One line
output: -- coaxial (BNC type): -- one line
Optical (TOSLINK): One line
Jitter 50 or less (crystal Semiconductor make CS8412 use) pS
Digital filter Burr-Brown 8 time oversampling digital filter
Post filter 3rd order passive LC vessel filter
Analog output RCA type
Frequency response 20Hz-20kHz+0 -3dB (at the time of a 44.1kHz sampling)
THD 0.009% or less (20Hz - 20kHz)
Output voltage 2.1Vrms
Output load impedance 120ohms
The maximum Dimensions DA-10st: Width 483x height 65x depth of 313mm
DA-10UA: Width 483x height 65x depth of 315mm
Weight DA-10st:5.5kg
DA-10UA:6kg
Option Crystal Semiconductor DA10-CS18
An 18-bit delta / sigma DAC (58,000yen)
Analog Devices DA10-AD20
20 bit DAC (49,000yen)
Ultraanalog DA10-UA20
Dual 20 bit DAC (138,000yen)
