器材规格

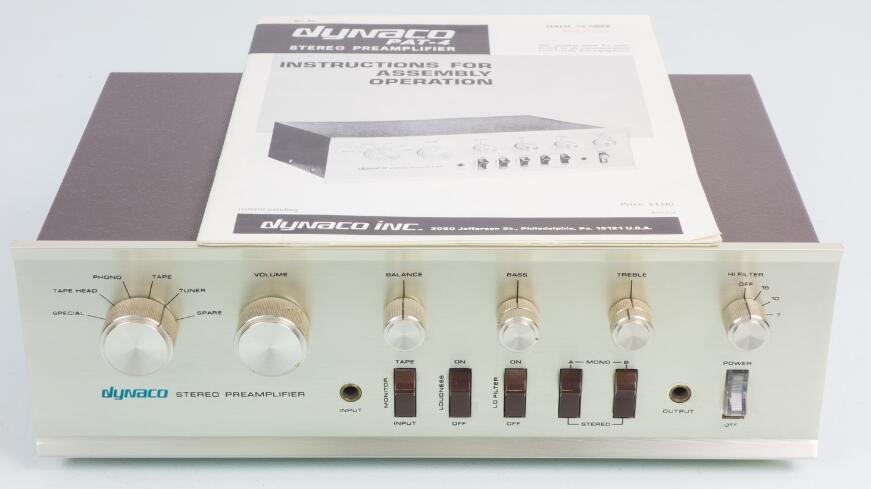

Form Solid-state stereo preamplifier
Frequency response Hi input: 10Hz-100kHz±0.5dB
Low input: 20Hz-20kHz±1dB
THD 0.05% or less (2V output, 20Hz - 20kHz)
IM distortion 0.05% or less
Signal to noise ratio Phono: 70dB (10mV input)
Hi input: 85dB (0.5V input)
Tone control Bass: ±16dB (50Hz)
Treble: ±12dB (10kHz)
Output voltage 10V (Hi impedance)
5V (600ohms)
Input impedance Phono: 47kohm
Tape head and Hi level:100kohm
Audio Output: 600ohms
Tape: 600ohms

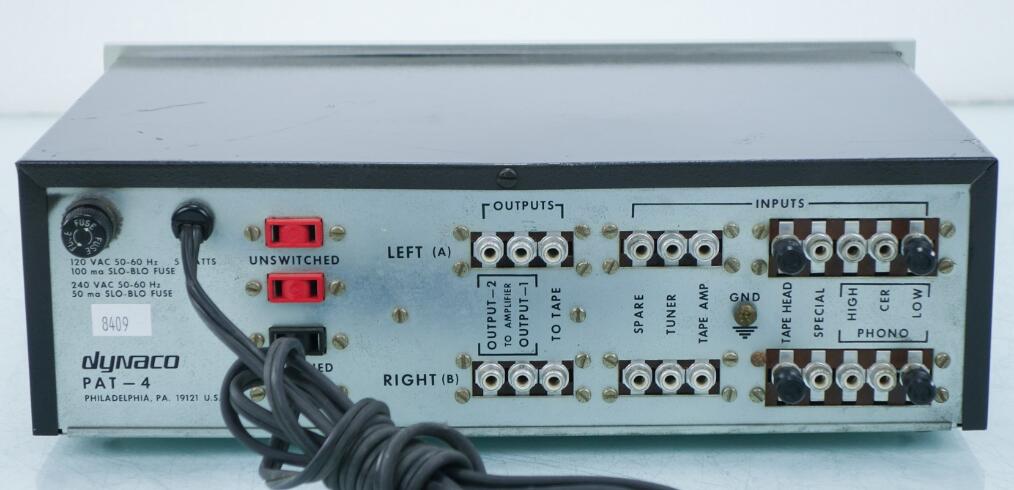

Input terminal Mag (Hi, Lo, one line each), Ceramic, Tape Head, tape Amp,
Tuner, Spare (2 sets), Special (Mic)
Output terminal They are an object for audios (2 sets and 1 set are with a switch), a front panel output,
an object for tape recording, and the above 4 sets.
The semiconductor used Transistor: Eight pieces
Diode: Two pieces
Dimensions Width 345x height 105x depth of 205mm
Weight 4.5kg
Option Wooden case (3,900yen)
Frequency response Hi input: 10Hz-100kHz±0.5dB
Low input: 20Hz-20kHz±1dB
THD 0.05% or less (2V output, 20Hz - 20kHz)
IM distortion 0.05% or less
Signal to noise ratio Phono: 70dB (10mV input)
Hi input: 85dB (0.5V input)
Tone control Bass: ±16dB (50Hz)
Treble: ±12dB (10kHz)
Output voltage 10V (Hi impedance)
5V (600ohms)
Input impedance Phono: 47kohm
Tape head and Hi level:100kohm
Audio Output: 600ohms
Tape: 600ohms
Input terminal Mag (Hi, Lo, one line each), Ceramic, Tape Head, tape Amp,
Tuner, Spare (2 sets), Special (Mic)
Output terminal They are an object for audios (2 sets and 1 set are with a switch), a front panel output,
an object for tape recording, and the above 4 sets.
The semiconductor used Transistor: Eight pieces
Diode: Two pieces
Dimensions Width 345x height 105x depth of 205mm
Weight 4.5kg
Option Wooden case (3,900yen)
