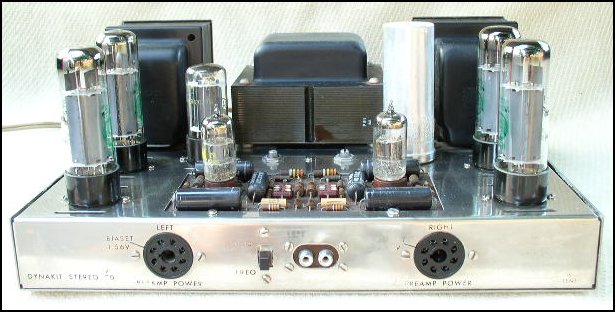

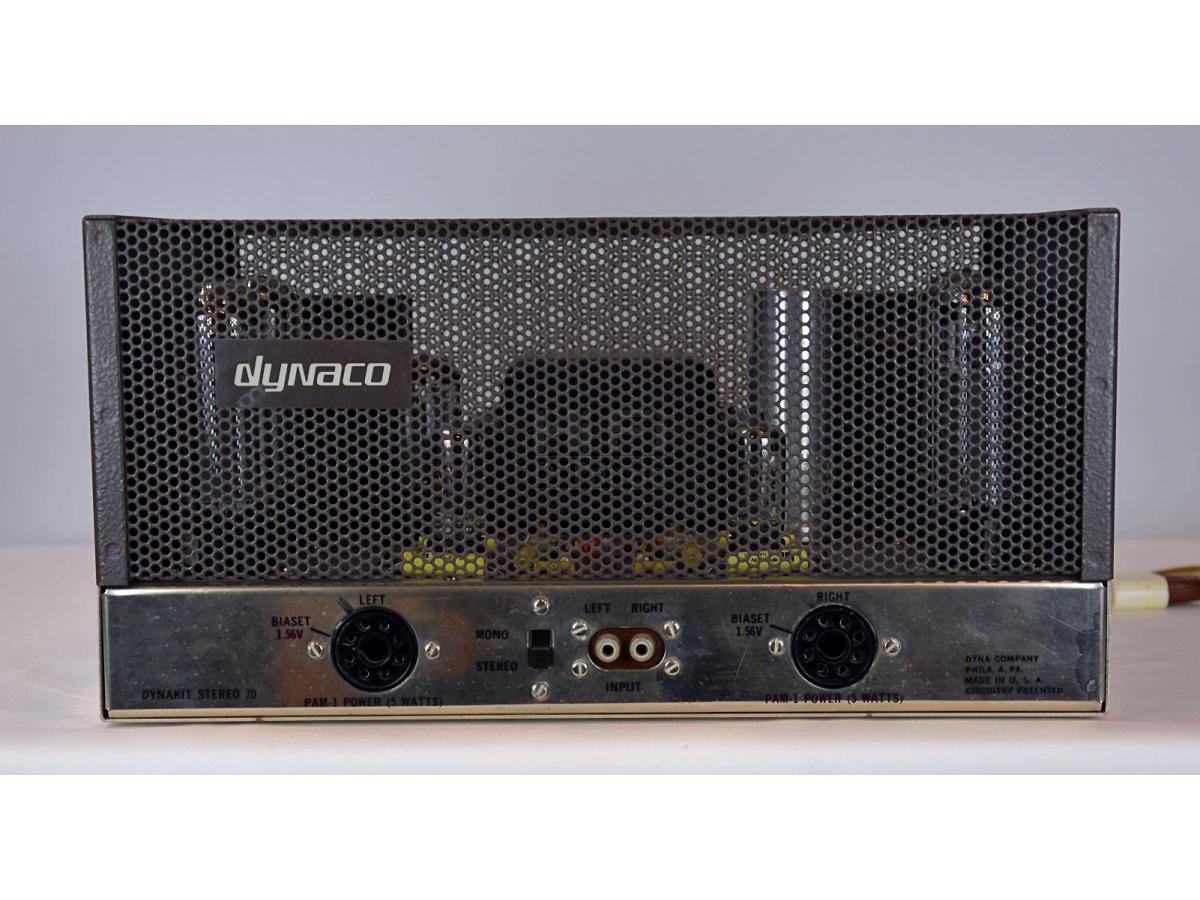

DYNACO大力宝/甜梦 大力宝DYNACO Stereo-70

上市参考售价:¥3,025

推出年代:1960

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
1976年——¥4450.00
kit: ——¥3450.00

器材规格

Form Tube stereo power amplifier
Output power 35W+35W (20Hz - 20kHz)
IHF output 45W+45W
Maximum except take-off 80W+80W
Frequency response 10Hz-40kHz±0.5dB
Distortion 1% or less (at the time of an Output power)
0.05% or less (at the time of 1W output)
Signal to noise ratio 90dB or more (70 W:00)
Dumping factor 20
Separation 55dB or more (20Hz - 20kHz)
Input sensitivity/impedance 1.3V (at the time of 35W output)
Output load impedance 4ohm, 8ohm, 16ohm
An attached circuit The power-source socket for preamplifiers (2 sets)
Dina bias set adjusting device
Monophonic stereo change-over switch
Valves employed EL-34(6CA7): 4 本
7199:2
GZ-34(5AR4): 1 本
Power consumption 190W
Dimensions Width 330x height 165x depth of 240mm
Weight 12.5kg
