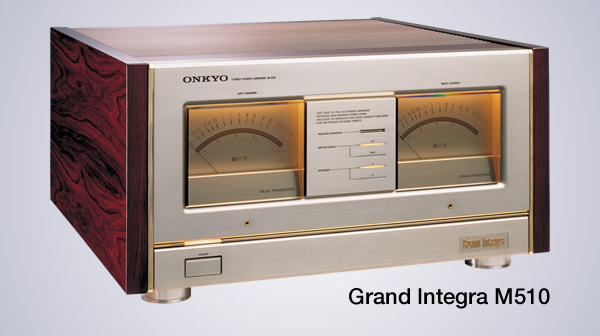

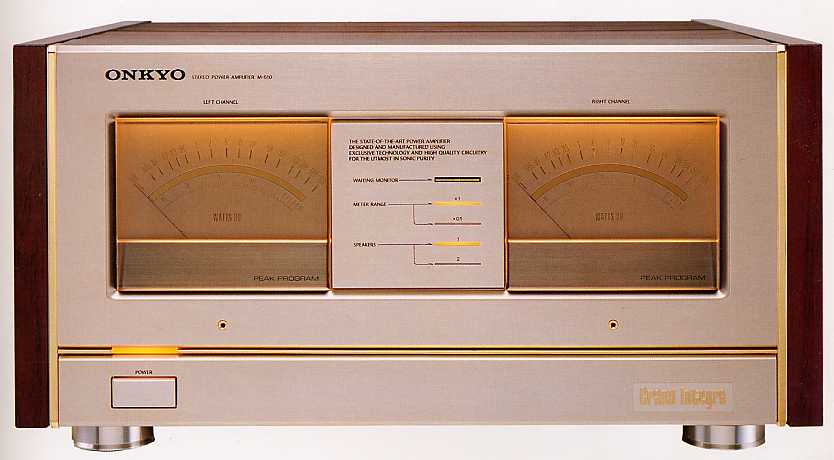

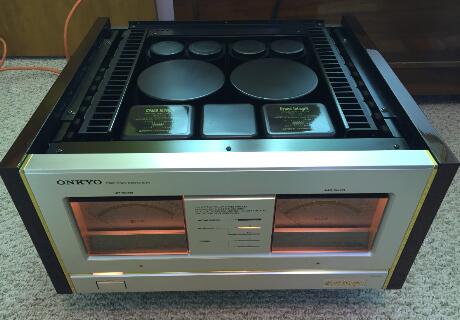

ONKYO 安桥 安桥ONKYO Grand Integra M-510

上市参考售价:¥42,500

推出年代:1984

0.00

  • (0人评价)
  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
1991——¥45000.00

器材规格

Form Stereo power amplifier

Output power
(20Hz - 20kHz, both channel drive) 500W+500W (4ohm)
370W+370W (6ohm)
300W+300W (8ohm)
THD (20Hz - 20kHz) 0.005% (at the time of an Output power)
Cross modulation distortion (70Hz:7kHz=4:1) 0.003% (at the time of an Output power)
Power bandwidth (IHF-3dB, THD 0.2%) 5Hz - 100kHz
Gain 33.8dB
Frequency characteristic 1Hz-100kHz+0 -1.5 dB
Input sensitivity 1V (at the time of an Output power)
0.058V (at the time of 1W output)
Input impedance 20kohm
SN ratio (A correction, input short-circuit) 120dB (at the time of an Output power)
Load impedance 1ohm-16ohm (music)
4ohm-16ohm (Electrical Appliance and Material Control Law specification succession)
Dumping factor 300 (8 ohm, 50Hz)

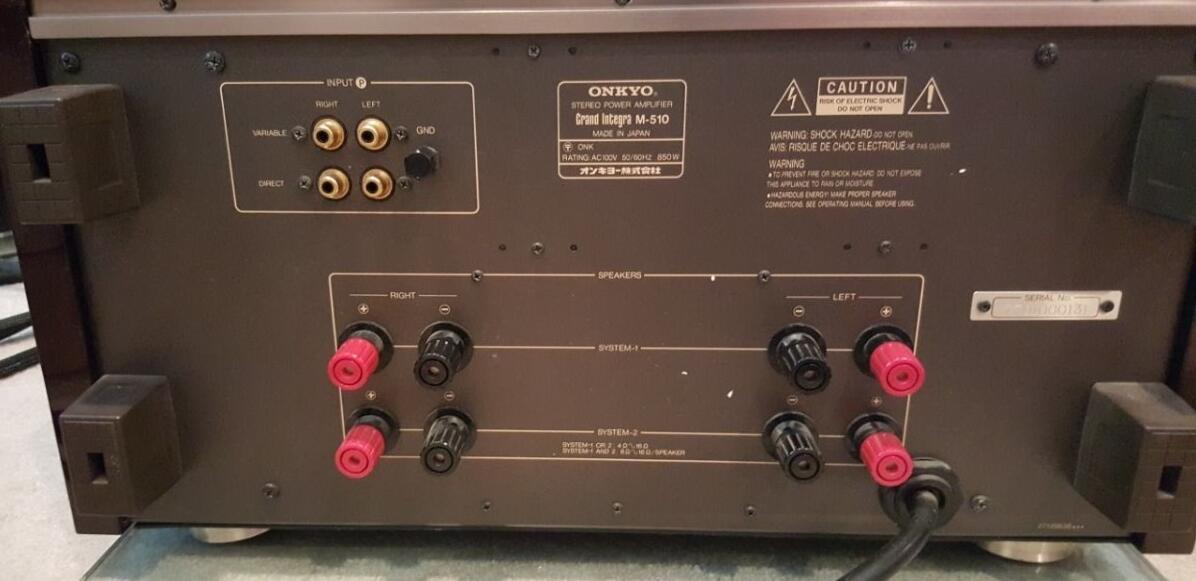

Input terminal Variable: One line
Direct: One line
Output-terminal Speaker: Two lines

Range switching x1 (0dB=300W)
x0.1 (0dB=30W)
Indicating range x1 range: 0.01W-800W
x0.1 range: 1W-80W
- 40-+4dB
Indication precision 0±1dB
- 10±2dB
- 20±3dB
Speed of response 100microsec (-infinity->0dB)
Carriage-return velocity 1sec (-0dB->-20dB)

Power source AC100V, 50Hz/60Hz
Power consumption 720W (Electrical Appliance and Material Control Law specification)
160W (at the time of a non-signal)
Dimensions Width 507x height 264x depth of 512mm
Weight 63kg
