器材规格

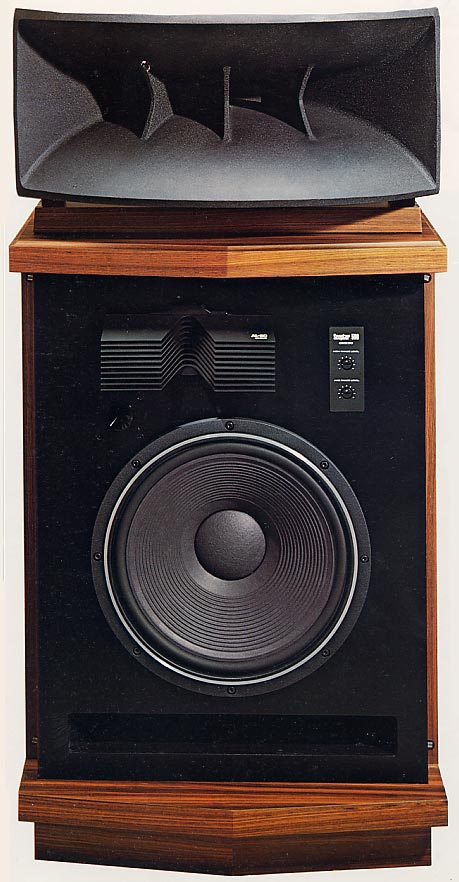

Scheme 4 ways, 4 speaker bass-reflex scheme, and a floor type

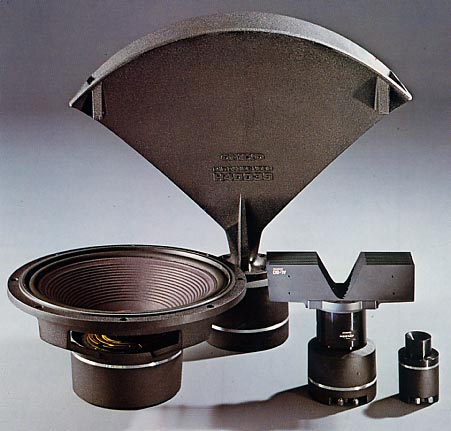

Using unit For low-pass: 38cm cone type (W3801)
For mid ranges: The method of a sectoral horn (D6540 A+H 4003S)
For high regions: A Catenoidal horn type with an acoustic lens
(D3520A+H2014P+AL80
For high super-regions: Horn type (TW3001)
Play frequency band 25Hz - 35000Hz
The maximum input 120W
Impedance 8ohms
Output sound pressure level 96dB/W/m
Maximum output sound pressure level 117dB/m
Cross over frequency 800Hz, 5000Hz
Cabinet internal volume 200L
Level control The independent level control for TW and STW
Dimensions Width 650x height 1296x depth of 624mm
Weight 97kg
one-set
Using unit For low-pass: 38cm cone type (W3801)
For mid ranges: The method of a sectoral horn (D6540 A+H 4003S)
For high regions: A Catenoidal horn type with an acoustic lens
(D3520A+H2014P+AL80
For high super-regions: Horn type (TW3001)
Play frequency band 25Hz - 35000Hz
The maximum input 120W
Impedance 8ohms
Output sound pressure level 96dB/W/m
Maximum output sound pressure level 117dB/m
Cross over frequency 800Hz, 5000Hz
Cabinet internal volume 200L
Level control The independent level control for TW and STW
Dimensions Width 650x height 1296x depth of 624mm
Weight 97kg
one-set
