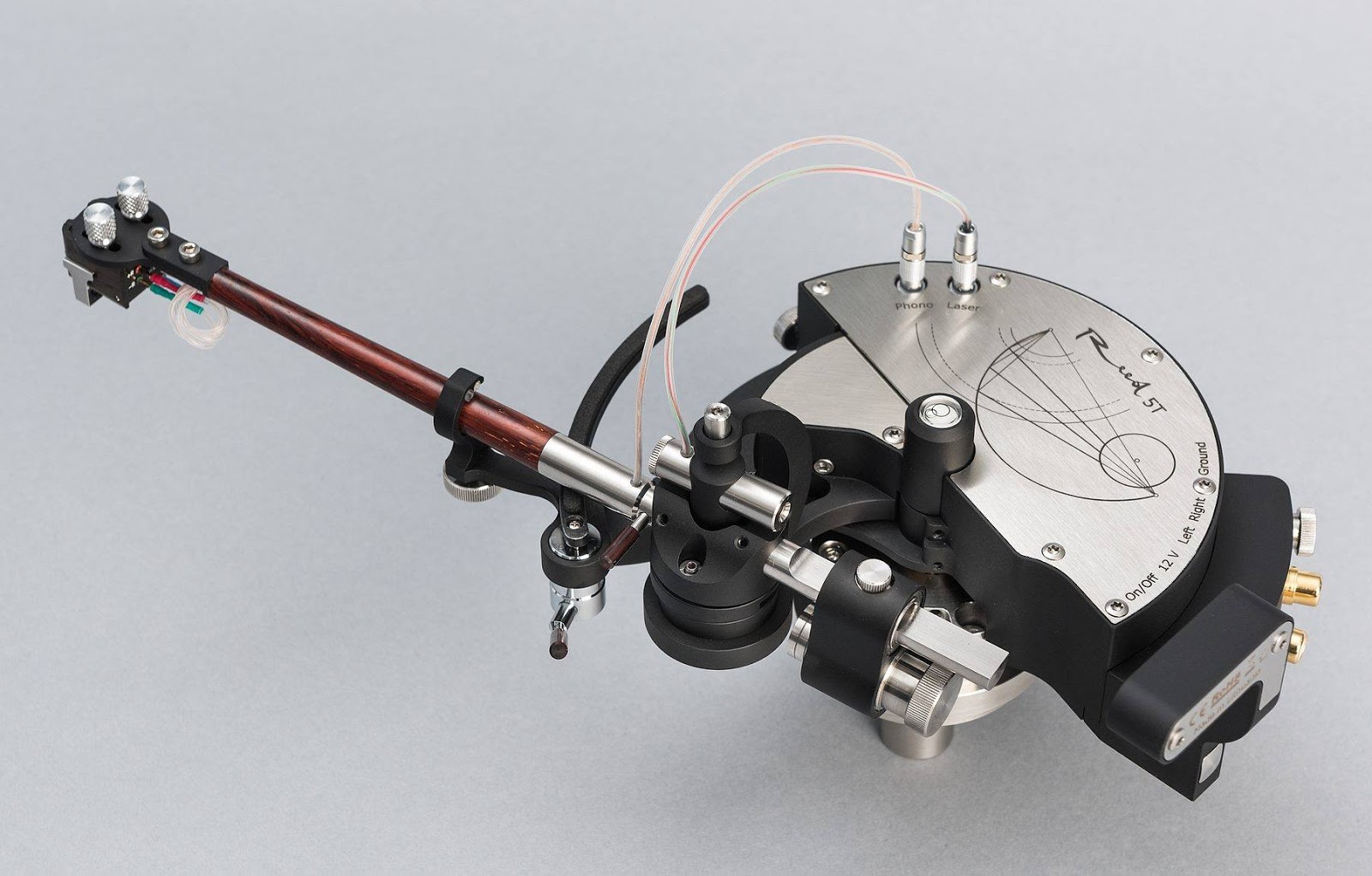

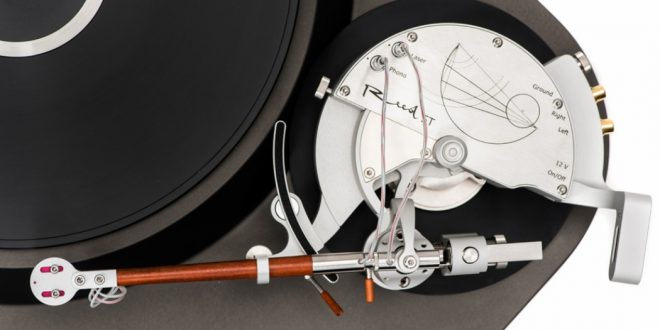

来自立陶宛的Reed所推出的唱臂与唱盘,绝对是发烧友心目中的逸品,Reed 5T是其首次发布的正切臂,
包括了许多的独特设计与创新技术,加上高品质的设计与制作,是Reed目前最顶级的唱臂。就技术上来
说,Reeed 5T是正切支点臂,其基于泰勒斯定理(Thales’ theorem ) 所设计。
P1, O1, P3 – Thales’ 半圆
P1-A1-P3, P1-A2-P3, P1-A3-P3均为90度角
A1B1 = A2B2= A3B3为臂长
B – 唱臂的垂直轴
P2 为圆的中心,经过B1,B2 , B3 (唱臂活动轴)
P3 – 线性感应列(Linear Sensor Array)
BP3 – 雷射光(Laser beam)
唱臂管的避震系统与Reed 3P 相似,并使用低噪音运转的轴心,唱臂的角度由有设限的马达控制,唱臂
的位置由雷射光与线性感应列所控制。
与一般的正切臂相比,Reed 5T的优点为: 更小的惯性(Few times smaller moment of inertia)、不需
要复杂的额外元件,如空气压缩机 (No need for complicated additional devices)、精致的设计
(Compact and sleek design)、水平与垂直的有效质量相似(Effective mass in both vertical and
horizontal directions is similar)。
资料来源:my-hiend
包括了许多的独特设计与创新技术,加上高品质的设计与制作,是Reed目前最顶级的唱臂。就技术上来
说,Reeed 5T是正切支点臂,其基于泰勒斯定理(Thales’ theorem ) 所设计。
P1, O1, P3 – Thales’ 半圆
P1-A1-P3, P1-A2-P3, P1-A3-P3均为90度角
A1B1 = A2B2= A3B3为臂长
B – 唱臂的垂直轴
P2 为圆的中心,经过B1,B2 , B3 (唱臂活动轴)
P3 – 线性感应列(Linear Sensor Array)
BP3 – 雷射光(Laser beam)
唱臂管的避震系统与Reed 3P 相似,并使用低噪音运转的轴心,唱臂的角度由有设限的马达控制,唱臂
的位置由雷射光与线性感应列所控制。
与一般的正切臂相比,Reed 5T的优点为: 更小的惯性(Few times smaller moment of inertia)、不需
要复杂的额外元件,如空气压缩机 (No need for complicated additional devices)、精致的设计
(Compact and sleek design)、水平与垂直的有效质量相似(Effective mass in both vertical and
horizontal directions is similar)。
资料来源:my-hiend
器材规格
Mounting distance: 251 mm
Tracking error: +/- 0.005 deg
Effective mass: 10-16 g, depending on armwand material (replaceable armwand)
Height adjustment: compatible with 28÷48 mm height platters
VTA adjustment precision: +/- 0.2 mm
Azimuth adjustment: +/- 8 deg
Downforce range: 10÷30 mN
Traction: Limited rotation sectional torque linear motor
Voltage: direct 12 V, using battery power source Reed Source 12V
Integrated level accuracy: +/-1 mm/m
Tracking error: +/- 0.005 deg
Effective mass: 10-16 g, depending on armwand material (replaceable armwand)
Height adjustment: compatible with 28÷48 mm height platters
VTA adjustment precision: +/- 0.2 mm
Azimuth adjustment: +/- 8 deg
Downforce range: 10÷30 mN
Traction: Limited rotation sectional torque linear motor
Voltage: direct 12 V, using battery power source Reed Source 12V
Integrated level accuracy: +/-1 mm/m
